Description

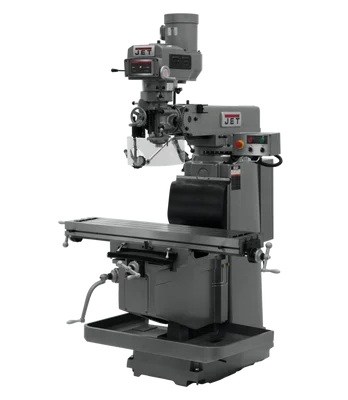

The Jet JTM-1254RVS Mill w/300S 3X-Q X/Y/Z, APDB (698180) is a heavy-duty vertical milling machine designed for professional metalworking applications. It boasts a spacious 12″ x 54″ table size and a variable speed motor for tackling a wide range of projects. The Acu-Rite 300S 3X (Q) Digital ReadOut (DRO) ensures precise positioning of your workpiece, while the power feeds on the X, Y, and Z axes automate movements for increased efficiency.
KEY FEATURES AND BENEFITS:
- Built for Durability and Performance:
- Constructed with certified Meehanite castings for strength and vibration dampening.
- Precision-bored and honed milling head minimizes deflection and ensures machining accuracy.
- High-precision Class 7 spindle bearings contribute to smooth operation and extended tool life.
- Heavy-duty spindle, precision-hardened and ground ways and table for long-lasting performance.
- Designed for Ease of Use:
- Automatic lubrication system reduces maintenance needs by lubricating every 180 minutes.
- Quick nut spindle feed allows for fast and easy tool changes.
- JET-exclusive new casting provides a convenient solution for leveling without lifting the machine.
- Additional Features:
- Three-stage power downfeed with automatic stop for controlled feeding.
- Spindle guard and brake for operator safety.
- Dual locks on all moveable surfaces for stability.
- Chip pan for easy waste collection.
- Drawbar and toolbox with tools included.
SPECIFICATIONS:
- Table Size: 12″ x 54″
- Spindle Taper: R-8
- Digital Readout: Acu-Rite 300S 3X (Q)
- Power Feeds: X, Y, & Z-axis
- Power Drawbar: Pneumatic
- Spindle Speed Range: 80 – 3,800 RPM
- Quill Travel: 5″
- Motor: 5 HP, 230/460V, 3-Phase
- Overall Dimensions: 92-1/8″ x 79-7/8″ x 104-1/4″
- Weight: 3,969 lbs.
HOW TO USE:
Follow these steps for efficient operation of the Jet JTM-1254RVS Mill w/300S 3X-Q X/Y/Z, APDB:
- Ensure the machine is properly leveled using the JET-exclusive new casting for leveling.
- Set the desired spindle speed within the range of 80 – 3,800 RPM based on the material being machined.
- Utilize the Acu-Rite 300S 3X (Q) Digital ReadOut (DRO) to accurately position the workpiece on X, Y, and Z axes.
- Activate the power feeds on the X, Y, and Z axes to automate movements during machining operations.
- Maintain the automatic lubrication system to ensure consistent machine performance and longevity.
- Use the pneumatic power drawbar for quick and efficient tool changes as needed.
BENEFITS OF USING Jet JTM-1254RVS Mill w/300S 3X-Q X/Y/Z, APDB (698180):
- Provides exceptional durability and vibration dampening with certified Meehanite castings.
- Ensures precise machining with high-precision Class 7 spindle bearings and Acu-Rite 300S 3X (Q) DRO.
- Enhances productivity with automated features like power feeds on X, Y, and Z axes.
- Simplifies maintenance with the automatic lubrication system and quick nut spindle feed.
FEATURES:
- Certified Meehanite Castings
- Precision-Bored and Honed Milling Head
- High-Precision Class 7 Spindle Bearings
- Acu-Rite 300S 3X (Q) Digital ReadOut (DRO)
- Power Feeds on X, Y, & Z Axes
- Pneumatic Power Drawbar
- Automatic Lubrication System
- Three-Stage Power Downfeed with Automatic Stop
- Spindle Guard and Brake
- Dual Locks on Moveable Surfaces
- Chip Pan
- Drawbar and Toolbox with Tools Included
