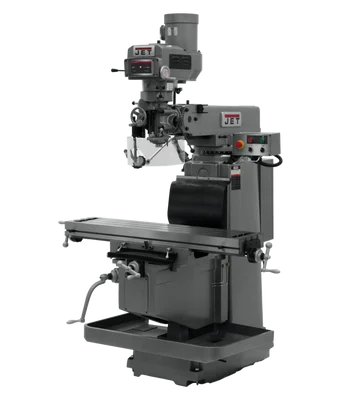

Jet JTM-1254RVS Mill w/300S 3X-K X/Y PFD APDB (698173)

Description

The Jet JTM-1254RVS Mill w/300S 3X-K X/Y PFD APDB (698173) is a high-performance vertical milling machine designed for demanding metalworking applications. It delivers exceptional precision, rigidity, and ease of use, making it ideal for professional machinists, fabrication shops, and vocational training centers.

KEY FEATURES AND BENEFITS:

• Precision and Control: Variable speed control with 3 ranges (80-3800 RPM) allows for optimal machining of various materials. The ACU-Rite 300S digital readout ensures accurate tool positioning for consistent results.
• Power and Automation: A powerful 5 HP motor provides ample power for tackling tough jobs. Power feeds on the X and Y axes automate movement during milling operations, improving efficiency and reducing operator fatigue. The optional factory-installed CNC control system (2 or 3-axis) further enhances precision and automation for complex machining processes.
• Rigidity and Durability: The JET JTM-1254RVS 300S boasts a Meehanite® cast iron base that effectively dampens vibrations and ensures machine stability during operation. Precision bored and honed milling head, high-precision Class 7 spindle bearings, and precision hardened and ground ways and table contribute to overall machining accuracy and extended machine life.
• User-Friendly Design: The JET JTM-1254RVS 300S incorporates several features that enhance operator convenience and safety. The quick spindle feed nut allows for fast tool changes, while the three-stage power downfeed with automatic stop ensures precise depth control. Adjustable gibs enable maintaining machine accuracy over time. Safety features include a spindle guard, spindle brake for rapid stopping, and automatic lubrication system for reduced maintenance.
• Versatility and Capacity: The mill accommodates larger workpieces with its spacious 12″ x 54″ table. The R-8 spindle taper offers compatibility with a wide range of tooling for diverse milling applications. The machine boasts a maximum table weight capacity of 925 lbs, making it suitable for handling heavier materials.

SPECIFICATIONS:

• Model: Jet JTM-1254RVS Mill w/300S 3X-K X/Y PFD APDB (698173)
• Table Size: 12″ x 54″
• Motor Power: 5 HP
• Spindle Taper: R-8
• Speed Range: 80-3800 RPM
• Maximum Table Weight Capacity: 925 lbs
• Machine Base: Meehanite® cast iron
• Certification: CSA/CUS certified
• Additional Features: Turcite B on X & Y axes, two 115V outlets for power feeds, LED machine lamp, dual locks on movable surfaces, chip pan, drawbar, toolbox with tools

HOW TO USE:

• **Step 1:** Ensure the milling machine is properly installed and secured on a stable surface.
• **Step 2:** Connect the machine to a power source and ensure all safety guards are in place.
• **Step 3:** Install the appropriate tool in the spindle and secure it using the quick spindle feed nut.
• **Step 4:** Set the desired speed range using the variable speed control.
• **Step 5:** Position the workpiece on the table and secure it using appropriate clamps or fixtures.
• **Step 6:** Use the power feeds to move the X and Y axes to the desired starting position.
• **Step 7:** Begin the milling operation, monitoring the process for accuracy and safety.
• **Step 8:** Adjust the power downfeed for precise depth control as needed.
• **Step 9:** After completing the milling operation, stop the machine and carefully remove the workpiece.
• **Step 10:** Clean the machine and work area, ensuring all tools are returned to their proper place.

BENEFITS OF USING Jet JTM-1254RVS Mill w/300S 3X-K X/Y PFD APDB (698173):

• **High Precision:** Ensures accurate machining with minimal errors, improving overall product quality.
• **Increased Efficiency:** Power feeds and automation reduce manual labor, speeding up the milling process.
• **Versatile Applications:** Capable of handling a wide range of materials and complex machining tasks.
• **Durable Build:** Constructed from high-quality materials, ensuring long-term reliability and reduced maintenance costs.
• **Enhanced Safety:** Includes multiple safety features to protect operators and maintain a safe working environment.

FEATURES:

• Variable speed control with 3 ranges for versatile machining.
• Powerful 5 HP motor for handling tough jobs.
• Meehanite® cast iron base for stability and vibration damping.
• Precision hardened and ground ways and table for accurate machining.
• R-8 spindle taper for compatibility with various tooling.
• Power feeds on X and Y axes for automated movements.
• Safety features like a spindle guard and automatic lubrication system.
