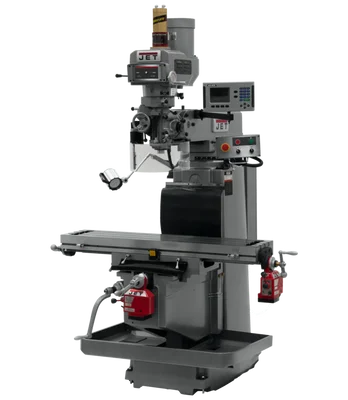

Jet JTM-1254RVS Mill w/200S 3X-Q X/Y PFD APDB (698123)

Description

The Jet JTM-1254RVS Mill w/200S 3X-Q X/Y PFD APDB (698123) is a heavy-duty vertical milling machine built for precision and ease of use. With a spacious 12″ x 54″ table and variable speed operation, this machine tackles a wide range of milling tasks for professional machinists and production shops.

KEY FEATURES AND BENEFITS:

• Durable Construction: Certified Meehanite® castings provide a solid base for accurate machining. The precision bored and honed milling head, high-precision Class 7 spindle bearings, and hardened and ground ways ensure smooth operation and consistent results.
• Powerful Performance: The 5 HP motor delivers ample power for demanding applications. The variable speed range of 80 to 3,800 RPM allows you to fine-tune settings for different materials and cutting tools.
• User-Friendly Design: Automatic lubrication reduces maintenance time, while the quick-nut spindle feed allows for fast and easy tool changes. JET’s exclusive new casting design simplifies machine leveling without lifting.
• Enhanced Efficiency: X and Y-axis power feeds automate movement for increased productivity. The pneumatic power drawbar simplifies tool changes further.
• Precision Machining: The ACU-RITE 203 digital readout provides accurate position control for precise cuts. Adjustable gibs throughout the machine allow for maintaining optimal performance over time.
• Safety and Convenience: The spindle guard protects operators, and the spindle brake ensures quick stopping. The LED machine lamp improves visibility for detailed work. Dual locks on movable surfaces enhance stability, while the chip pan facilitates easy chip collection.

SPECIFICATIONS:

• Table size: 12″ x 54″
• Motor: 5 HP, 230/460V, 3-phase
• Spindle taper: R-8
• Spindle speed range: 80 – 3,800 RPM
• Quill travel: 5″
• Max distance spindle to table: 23 inches
• Weight: 3,969 lbs.

HOW TO USE:

Here’s a simple step-by-step guide on how to use the Jet JTM-1254RVS Mill w/200S 3X-Q X/Y PFD APDB:

1. Turn on the machine using the power switch.
2. Set the desired speed using the variable speed control knob.
3. Load the workpiece onto the table and secure it using the T-slots.
4. Adjust the cutting depth using the quill feed handle.
5. Engage the X and Y-axis power feeds for automated movement.
6. Monitor the cutting process using the ACU-RITE 203 digital readout.
7. After finishing, turn off the machine and clean the workspace.

BENEFITS OF USING Jet JTM-1254RVS Mill w/200S 3X-Q X/Y PFD APDB (698123):

• Provides precise and accurate machining results.
• Enhances productivity with automated features.
• Ensures operator safety with built-in safety measures.
• Reduces maintenance time with automatic lubrication.
• Offers versatility for a wide range of milling applications.

FEATURES:

• Durable Meehanite® castings for stability and vibration dampening.
• High-precision Class 7 spindle bearings for smooth operation.
• Automatic lubrication system for reduced maintenance.
• Quick-nut spindle feed for fast and easy tool changes.
• X and Y-axis power feeds for automated movement.
• ACU-RITE 203 digital readout for precise position control.
• Spindle guard and brake for operator safety.
• LED machine lamp for improved visibility.
• Dual locks on movable surfaces for stability.
• Chip pan for easy waste collection.
• Includes toolbox with essential tools.
