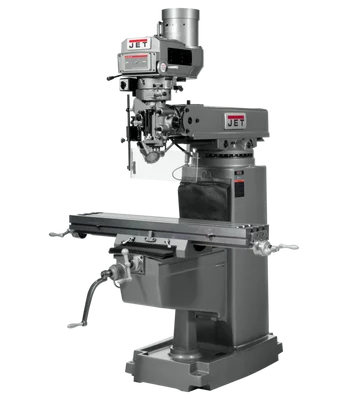

Jet JTM-1050 Mill w/3-Axis ACU-RITE 200S DRO XYZ Powerfeeds (690160)

Description

The Jet JTM-1050 Mill w/3-Axis ACU-RITE 200S DRO XYZ Powerfeeds (690160) is a robust and versatile machine built for precision metalworking applications. Its Meehanite® cast iron base provides a strong foundation for stability and vibration dampening during operation. The hardened and ground table ensures flatness and accuracy for your workpieces. High-precision class 7 bearings support the spindle, minimizing runout for clean cuts.

KEY FEATURES AND BENEFITS:

• Ensuring Efficiency and Control: The JET JTM-1050 boasts a user-friendly design for efficient operation. The variable speed spindle allows you to adjust cutting speeds for different materials, while the three-axis power feed (X, Y, Z) automates movements for repetitive tasks. The three-stage power downfeed with automatic stop provides precise depth control and simplifies drilling operations.
• Precision and Readability: The integrated ACU-RITE 200S DRO (Digital ReadOut) on all three axes enhances positioning accuracy by displaying measurements in real-time. This eliminates the need for manual measuring tools and reduces the risk of errors.
• Built for Durability: The JET JTM-1050 is built to withstand demanding workloads. The large table size (10″ x 50″) accommodates various project sizes. Turcite B surfacing on the X and Y axes ensures smooth travel of the worktable. Locks on all movable surfaces further enhance stability during milling operations. The large quill diameter adds strength and rigidity to the machine.

SPECIFICATIONS:

• Meehanite® Cast Iron Base
• Hardened and Ground Table
• High-Precision Class 7 Bearings
• Variable Speed Spindle
• Three-Axis Power Feed (X, Y, Z)
• Three-Stage Power Downfeed with Automatic Stop
• ACU-RITE 200S DRO (Digital ReadOut) on All Three Axes
• Table Size: 10″ x 50″
• Turcite B Surfacing on X and Y Axes
• Locks on All Movable Surfaces
• Large Quill Diameter
• Internally Cooled Spindle Head
• Internal Coolant Tank (Pump Not Included)
• One-Shot Lubrication System
• Includes Toolbox with Essential Tools

HOW TO USE:

1. Initial Setup: Ensure the machine is placed on a stable surface and properly grounded.
2. Power On: Connect to a suitable power source and turn on the machine using the main power switch.
3. CNC Programming: Use the ACU-RITE 200S DRO to program your machining operations. The real-time display facilitates easy and accurate positioning.
4. Tool Installation: Insert the appropriate tool into the spindle and secure it properly.
5. Workpiece Setup: Place the workpiece on the table and secure it using appropriate clamps and fixtures.
6. Machining Operation: Start the machine and follow the programmed instructions for machining the workpiece.
7. Power Down: After completing the machining, turn off the machine and disconnect it from the power source.
8. Maintenance: Regularly clean the machine and perform maintenance checks as recommended in the user manual.

BENEFITS OF USING Jet JTM-1050 Mill w/3-Axis ACU-RITE 200S DRO XYZ Powerfeeds (690160):

• Enhanced precision and accuracy in machining operations
• Increased efficiency with automation and user-friendly controls
• Versatile capabilities for handling a wide range of materials and applications
• Robust construction for long-term reliability and performance
• Industry-leading warranty for peace of mind

FEATURES:

• User-friendly design with efficient operation
• Variable speed spindle for different materials
• Three-axis power feed for automating movements
• Three-stage power downfeed with automatic stop
• Real-time positioning accuracy with ACU-RITE 200S DRO
• Durable construction to withstand demanding workloads
