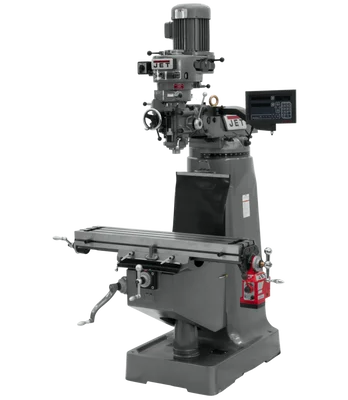

Jet JTM-1 Mill With Newall DP700 DRO With X-Axis Powerfeed (691188)

Description

The Jet JTM-1 Mill With Newall DP700 DRO With X-Axis Powerfeed (691188) is a powerful and versatile tool designed to meet the demands of both professional machinists and dedicated hobbyists. It boasts a robust construction, precise features, and convenient operation to help you achieve exceptional results in your projects.

KEY FEATURES AND BENEFITS:

• Precision and Accuracy: The Newall C80 or DP700 digital readout (DRO) system ensures accurate measurements and precise positioning of your workpiece, minimizing errors and maximizing efficiency.
• Enhanced Productivity: The X-axis powerfeed automates the movement of the table along the X-axis, reducing manual effort and allowing you to focus on other aspects of your work.
• Durability and Stability: The Meehanite casting construction provides exceptional rigidity and dampens vibrations, ensuring stability and consistent performance even under heavy loads.
• Versatile Performance: With 16 spindle speeds ranging from 80 to 5,440 RPM, the JTM-1 mill can handle a wide array of materials and cutting operations.
• User-Friendly Design: Features like the one-shot lubrication system, three-stage power downfeed with auto stop, and internal coolant tank (pump not included) simplify maintenance and operation.

SPECIFICATIONS:

• Motor: 2 HP, 230V, 3Ph
• Spindle Speeds: 16 (80-5,440 RPM)
• Spindle Taper: R-8
• Table Size: 9 x 42 inches
• Travel (X/Y/Z): 23-7/8″/12-1/2″/5″ (20-2/7″ with X-axis powerfeed)
• Weight: 2200 lbs
• Dimensions (W x L x H): 57 x 64 x 82 inches

HOW TO USE:

1. Setup: Ensure the mill is properly leveled and anchored to a stable surface.
2. Workpiece: Secure your workpiece to the table using clamps or vises.
3. Tooling: Select and install the appropriate cutting tool for your desired operation.
4. DRO (if equipped): Zero the DRO axes and set your desired dimensions.
5. Spindle Speed: Choose the appropriate spindle speed based on your material and tool.
6. Feed Rate: Manually or using the powerfeed (if equipped), engage the table movement.
7. Cutting: Carefully monitor the cutting process, adjusting speed and feed as needed.
8. Coolant (optional): If using coolant, activate the system before starting the cut.

BENEFITS OF USING THE Jet JTM-1 Mill With Newall DP700 DRO With X-Axis Powerfeed (691188):

• Increased Accuracy: Achieve precise results with minimal errors.
• Improved Productivity: Automate repetitive tasks and reduce manual labor.
• Enhanced Versatility: Handle a wide range of materials and operations.
• Durable Construction: Enjoy reliable performance for years to come.

FEATURES:

• Precision ground table and ways
• Chromed quill
• One-shot lubrication
• Three-stage power downfeed with auto stop
• Internal coolant tank
