Description

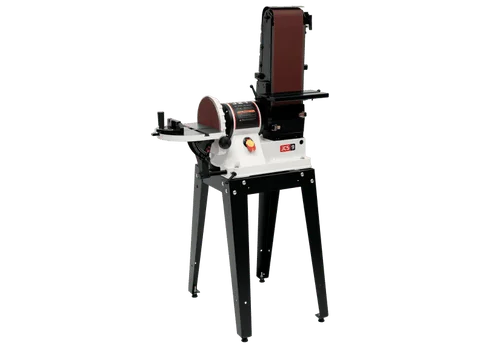

Jet JSG-96OS 3/4HP 1PH 6×48″ Belt / 9″ Disc Sander Open Stand (708596K) is a versatile woodworking tool designed for efficient and precise sanding. This compact machine combines a 9″ disc and a 6″ x 48″ belt, offering a wide range of sanding capabilities. Its powerful 3/4 HP motor delivers ample power for tackling various materials.
KEY FEATURES AND BENEFITS:
- Versatility: The combination of a 9″ disc and 6″ x 48″ belt allows for diverse sanding applications.
- Power: The industrial-grade 3/4 HP motor ensures efficient material removal.
- Convenience: Quick-release belt tension lever and quick-lock dust cover enable easy operation and maintenance.
- Accuracy: Large cast iron table with preset stops at 90 and 45 degrees provides precise sanding angles.
- Safety: Specially designed belt guard protects the operator while maximizing belt usage.
- Dust Management: Dust collection port helps maintain a clean workspace.
- Portability: Built-in handles facilitate easy movement of the sander.
SPECIFICATIONS:
- Disc Diameter: 9 inches
- Disc Speed: 1725 RPM
- Disc Table Tilt: 10 degrees up, 45 degrees down
- Disc Table Size: 12 x 7-1/2 inches
- Sanding Belt Size: 48 x 6 inches
- Belt Speed: 2258 RPM
- Belt Table Tilt: 10 degrees up, 45 degrees down
- Belt Table Size: 11 x 5-1/2 inches
- Dust Port Outside Diameter: 4 inches
- Motor Power: 3/4 HP
- Motor Phase: 1 phase
- Motor Voltage: 115 volts
- Motor Amps: 11 amps
- Net Weight: 159 pounds
- Overall Dimensions: 16 x 29 x 28-1/2 inches
HOW TO USE:
- Set up: Place the sander on a stable work surface. Ensure proper ventilation and dust collection.
- Adjust table angle: Set the disc or belt table to the desired angle using the preset stops.
- Install sanding belt: Open the belt tension lever, install the belt, and tighten the lever.
- Install sanding disc: Remove the quick-lock dust cover, attach the sanding disc, and replace the cover.
- Turn on power: Plug the sander into a grounded outlet and turn on the power switch.
- Sanding: Feed the workpiece into the sander, applying gentle pressure. Adjust the feed speed based on material and desired finish.
- Safety: Wear appropriate safety gear, including eye protection and dust mask.
BENEFITS OF USING Jet JSG-96OS 3/4HP 1PH 6×48″ Belt / 9″ Disc Sander Open Stand (708596K):
- Improved efficiency: The powerful motor and versatile design enhance sanding productivity.
- Precise results: The cast iron table and adjustable angles allow for accurate and consistent sanding.
- User comfort: Quick-release features and ergonomic design reduce operator fatigue.
- Versatility: Handles a wide range of materials and sanding tasks.
- Durability: Built with high-quality components for long-lasting performance.
FEATURES:
- Large cast iron table with preset stops
- Exclusive dual thumbscrew belt tracking adjustment
- Graphite covered steel platen
- Specially designed belt guard
- Rubber-coated drive drum
- Tracking adjustment knob with quick-lock handle
- Quick-release belt tension lever
- Quick-lock dust cover
- Single 4 inch dust port
- Powerful 3/4 HP motor
- Built-in handles
