Description

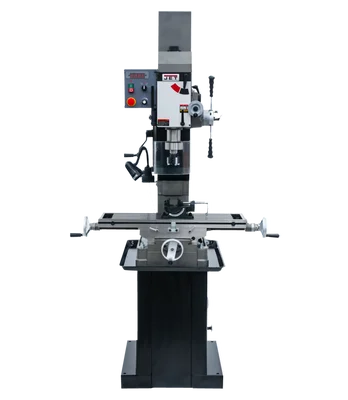

The Jet JMD-45VSPF VS Square Column Mill/Drill w/Newall (351155) is a heavy-duty machine engineered for precision drilling in demanding environments.
KEY FEATURES AND BENEFITS:
- Heavy-duty construction: Built to handle tough drilling tasks and ensure stability during operation.
- Variable speed geared head: Provides a wide range of speeds (50-2500 RPM) to match the material and application.
- Square column with dovetail ways: Delivers rigidity and accuracy for both milling and drilling operations.
- Power downfeed: Enables consistent and precise feed control for drilling.
- Newall DP700 2-axis DRO: Improves positioning accuracy by displaying digital readouts for table and quill movements.
- X-axis powerfeed (on some models): Automates table movement along the X-axis for repetitive tasks, increasing efficiency.
- Additional Features: Spindle guard, work lamp, calibrated fine down feed, easy-to-read depth gauge, head tilts for angled drilling, quick-select gear levers for rapid speed changes, forward/reverse switch.
SPECIFICATIONS:
- Drilling Capacity: 1-1/2 in.
- Face Mill Capacity: 4 in.
- End Mill Capacity: 3/4 in.
- Swing: 19-11/16 in.
- Spindle Travel: 5 in.
- Quill Diameter: 3 in.
- Table Size: 9-1/2 x 32-1/4 in.
- Motor: 1-1/2 HP, 115/230V, 1Ph
- Weight: 791 lbs.
HOW TO USE:
- Setup: Secure the workpiece to the mill/drill table using a vise or clamps. Ensure the machine is level and on a stable surface.
- Select Speed and Feed: Choose the appropriate spindle speed based on the material and drill bit size. Engage the power downfeed or X-axis powerfeed (if equipped) for consistent feed control.
- Drilling: Lower the quill using the handwheel or power feed until the drill bit makes contact with the workpiece. Engage the spindle and begin drilling, applying moderate pressure.
- Milling (Optional): Mount the desired cutting tool in the spindle taper. Adjust the table height and tilt angle as needed for the milling operation. Engage the spindle and power feed (if equipped) to begin cutting.
- Safety: Always wear safety glasses and appropriate personal protective equipment (PPE) while operating the machine. Keep hands clear of moving parts. Ensure the machine is off and unplugged before performing any maintenance.
BENEFITS OF USING Jet JMD-45VSPF VS Square Column Mill/Drill w/Newall (351155):
- Precision and Control: Variable speed, power downfeed, and Newall DRO deliver accurate results for drilling and milling tasks.
- Heavy-Duty Construction: Durable design tackles demanding jobs in high-intensity environments.
- Versatility: Handles a wide range of drilling and milling operations.
- Efficiency: Power feed options automate repetitive tasks, saving time and effort.
- User-Friendly Features: Spindle guard, work lamp, and easy-to-read depth gauge enhance user experience and safety.
FEATURES:
- Square column with dovetail ways for rigidity and accuracy
- Variable speed geared head for a wide range of drilling applications
- Power downfeed for consistent drilling depth
- Newall DP700 2-axis DRO for improved positioning accuracy (on some models)
- X-axis powerfeed for automated table movement (on some models)
- Spindle guard, work lamp, calibrated fine down feed, easy-to-read depth gauge
- Head tilts for angled drilling
- Quick-select gear levers for rapid speed changes
- Forward/reverse switch
