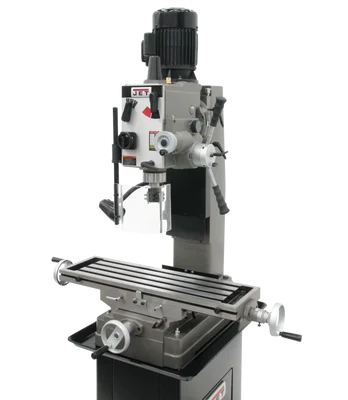

Jet JMD-45GHPF Gear Head Square Column Mill/Drill w/Pwr Dwnfd (351046)

Description

The Jet JMD-45GHPF Gear Head Square Column Mill/Drill w/Pwr Dwnfd (351046) is a heavy-duty machine designed for precision drilling and milling tasks in demanding environments.

KEY FEATURES AND BENEFITS:

• Powerful Performance: Delivers full power to cutting tools with a 1-1/2 HP, 6-speed geared head motor for efficient drilling and milling of various materials.
• Rigid Construction: Features a square column with dovetail ways for exceptional rigidity and minimal deflection during operation, ensuring accuracy and control.
• Versatile Functionality: Head tilts left and right 90 degrees for angled drilling and milling. Power downfeed provides precise control over drill depth. R8 spindle accepts a wide range of milling and drilling attachments for diverse applications.
• User-Friendly Design: Easy-to-read internal depth gauge for accurate drilling. Rapid spindle speed changes through quick-select levers for efficient work. Work lamp enhances visibility of the work area.
• Safety and Standards: CSA/CUS certified for electrical safety, ensuring operator protection.

SPECIFICATIONS:

• Drilling Capacity: 1-1/2 in.
• Face Mill Capacity: 4 in.
• End Mill Capacity: 3/4 in.
• Swing: 19-11/16 in.
• Max Distance Spindle to Table: 18-1/8 in.
• Spindle Taper: R8
• Spindle Travel: 5 in.
• Quill Diameter: 3 in.
• Column Diameter: 7-7/8 in. x 7-5/8 in. square
• Number of Spindle Speeds: 6
• Range of Spindle Speeds: 65-1550 RPM
• Table Size: 9-1/2 in. x 32-1/4 in.
• Table Longitudinal Travel: 20-1/2 in.
• T-Slots: 4 x 5/8 in.
• Base Dimensions: 26-11/16 in. x 15-15/16 in.
• Motor: 1-1/2 HP, 115/230V, single-phase
• Overall Dimensions: 29 in. x 36 in. x 50 in.
• Weight: 820 lbs.

HOW TO USE:

1. Assembly and Setup: Refer to the user manual for detailed assembly instructions. Secure the mill/drill to a stable workbench and ensure proper electrical connection.
2. Workpiece Setup: Mount the workpiece securely using clamps or vises on the milling table. For drilling, mark the drilling locations clearly.
3. Drilling: Select the appropriate drill bit size for your project. Choose the desired spindle speed based on the material and drill bit diameter. Engage the power feed and carefully lower the drill bit towards the workpiece, maintaining control and applying moderate pressure. Utilize the depth gauge to monitor drilling depth.
4. Milling: Install the appropriate milling cutter in the R8 spindle. Adjust the spindle speed and feed rate according to the material and milling application. Move the table or workpiece to achieve the desired milling pattern.

BENEFITS OF USING Jet JMD-45GHPF Gear Head Square Column Mill/Drill w/Pwr Dwnfd (351046):

• Precision and Accuracy: Rigid construction and precise controls ensure high-quality drilling and milling results.
• Versatility: Handles a wide range of drilling and milling tasks with various materials.
• Efficiency: Powerful motor and user-friendly features allow for efficient completion of projects.
• Durability: Heavy-duty construction ensures long-lasting performance in demanding environments.

FEATURES:

• 6-Speed Geared Head Motor
• Square Column with Dovetail Ways
• Power Downfeed
• R8 Spindle
• Easy-Read Internal Depth Gauge
• Tilting Head (90° Left & Right)
• Rapid Spindle Speed Changes
• Work Lamp
• CSA/CUS Certified
