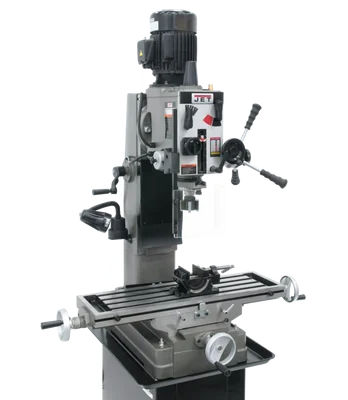

Jet JMD-45GH Square Column Mill/Drill w/Newall DP700 2-Ax DRO (351150)

Description

The Jet JMD-45GH Square Column Mill/Drill w/Newall DP700 2-Ax DRO (351150) is a powerful and versatile machine designed for professional machinists and metalworking shops. This heavy-duty mill/drill delivers exceptional rigidity and precision for a wide range of drilling and milling applications.

KEY FEATURES AND BENEFITS:

• Heavy-duty construction: Engineered for demanding environments and high-precision tasks.
• Powerful 6-speed geared head: Delivers full power to cutting tools (65-1,550 RPM) for efficient material removal.
• Square column with dovetail ways: Ensures stability and minimizes vibration during operation.
• Digital Readout (DRO): Provides accurate positioning and simplifies repetitive tasks.
• Rapid spindle speed changes: Quick-select gear levers for efficient workflow.
• Safety features: Includes LED work lamp, spindle guard, and large handle grips for operator safety.
• CSA/CUS certified: Meets strict electrical safety standards.

SPECIFICATIONS:

• Dimensions: 29″ x 36″ x 50″ (length x width x height)
• Weight: 727 lbs
• Drilling capacity: 1-1/2 in.
• End mill capacity: 3/4 in.
• Face mill capacity: 4 in.
• Longitudinal table travel: 20-1/2 in.
• Motor: 1-1/2 HP
• Table size: 9-1/2 in. x 32-1/4 in.

HOW TO USE:

1. Installation: Secure the mill/drill on a stable and level work surface. Ensure proper electrical connection based on voltage requirements (115V/230V).
2. Workpiece Setup: Secure the workpiece using clamps or a vise on the mill/drill table.
3. Drilling: Choose the appropriate drill bit for your material and desired hole size. Set the spindle speed and depth using the controls and DRO. Engage the feed mechanism and drill the hole.
4. Milling: Install the desired milling cutter in the spindle. Set the spindle speed and feed rate based on the material and operation. Move the table along the X and/or Y-axis using the handwheels or power feed (if equipped) to achieve the desired milling profile.
5. Safety: Always wear safety glasses, gloves, and appropriate clothing while operating the mill/drill. Use the included spindle guard and be mindful of loose materials or clothing that could get caught in moving parts.

BENEFITS OF USING Jet JMD-45GH Square Column Mill/Drill w/Newall DP700 2-Ax DRO (351150):

• Increased productivity: Powerful motor, rapid speed changes, and precise DRO system enable faster and more efficient machining.
• Enhanced accuracy: Rigid construction, square column with dovetail ways, and DRO contribute to precise drilling and milling results.
• Versatility: Handles a wide range of drilling and milling tasks with various materials.
• Durability: Built to withstand demanding applications in professional environments.
• Safety compliance: Meets CSA/CUS electrical safety standards for operator peace of mind.

FEATURES:

• LED work lamp for improved visibility during operation.
• Calibrated fine down feed for accurate depth control.
• Easy-to-read internal depth gauge.
• Head tilts left and right 90 degrees for angled drilling and milling.
• Four T-slots in the table for versatile workpiece clamping.
