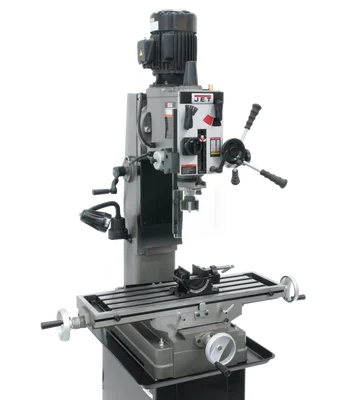

Jet JMD-45GH Geared Head Square Column Mill/Drill (351045)

Description

The Jet JMD-45GH Geared Head Square Column Mill/Drill (351045) is a heavy-duty machine engineered for precision drilling and milling applications in high-intensity environments.

KEY FEATURES AND BENEFITS:

• Heavy-duty design: Ensures rigidity for accurate results.
• 6-speed geared head: Delivers full power to cutting tools for a variety of materials.
• Square column with dovetail ways: Provides increased stability during operation.
• Spindle guard and work lamp: Enhance safety and visibility in your workspace.
• Easy-to-read depth gauge and tilting head (90°): Allow for precise control and versatility.
• Quick-select gear levers: Enable rapid spindle speed changes for efficient operation.

SPECIFICATIONS:

• Motor: 1.5 HP
• Number of Spindle Speeds: 6 (65 – 1,550 RPM)
• Spindle Taper: R-8
• Spindle Travel: 5 in.
• Drilling Capacity: 1-1/2 in.
• End Mill Capacity: 3/4 in.
• Face Mill Capacity: 4 in.
• Longitudinal Table Travel (X-axis): 20-1/2 in.
• Table Size: 9-1/2 in. x 32-1/4 in.
• Swing: 19-11/16 in.
• Dimensions (L x W x H): 29 in. x 36 in. x 50 in.
• Weight: 727 lbs.
• Voltage: 115V/230V

HOW TO USE:

1. Set up the mill/drill: Secure the machine to a stable workbench and adjust the column height as needed.
2. Install the cutting tool: Select the appropriate drill bit or milling cutter for your project and secure it tightly in the spindle.
3. Position the workpiece: Clamp your material firmly to the table using the T-slots or a vise.
4. Adjust depth and speed: Set the desired drilling depth using the depth gauge and select the appropriate spindle speed based on the material and cutting tool.
5. Engage the feed and operate: Engage the quill feed mechanism and carefully maneuver the cutting tool into the workpiece. Utilize the hand wheels for precise control during drilling or milling operations.

BENEFITS OF USING Jet JMD-45GH Geared Head Square Column Mill/Drill (351045):

• Precision and control: Delivers accurate results for demanding drilling and milling tasks.
• Versatility: Handles a wide range of drilling and milling applications with various materials.
• Durability: Built to withstand heavy-duty use in professional workshops and production environments.
• Safety features: Spindle guard and work lamp promote a safe working environment.
• Efficiency: Quick-select gear levers and easy-to-read depth gauge allow for efficient operation.

FEATURES:

• Heavy-duty construction
• 6-speed geared head
• Square column with dovetail ways
• Spindle guard
• Work lamp
• Calibrated fine down feed
• Easy-to-read internal depth gauge
• Head tilts left & right 90 degrees
• Rapid spindle speed changes through quick-select gear shift levers
