Description

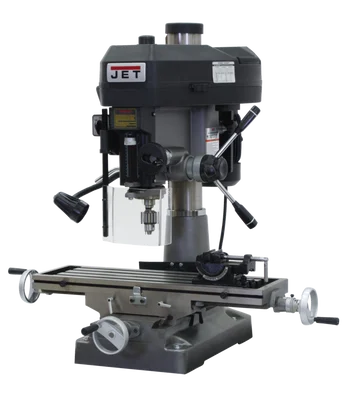

The Jet JMD-18 Mill/Drill With Newall DP700 DRO (350126) combines the functions of a drill press and milling machine, providing versatile capabilities for drilling, light milling, and facing. This robust machine features a 2 HP motor, durable cast iron column, and extra-large worktable, making it ideal for various workshop applications.
KEY FEATURES AND BENEFITS:
- Combines Functions: Combines drill press and milling machine functions for drilling, light milling, and facing.
- Powerful Motor: 2 HP motor delivers ample power for various materials.
- Stability: Durable cast iron column ensures stability during operation.
- Variable Speeds: 12 variable speeds (150-3,000 RPM) for adapting to different tasks.
- Quill Travel: 3.5″ quill travel allows for deep drilling.
- Spindle Taper: R8 spindle taper offers compatibility with a wide range of tooling.
- Included Accessories: Includes drill chuck, facemill, work lamp, and Newall DP700 DRO for precise control.
- Large Worktable: Extra-large worktable accommodates bigger workpieces.
- Versatile Head: 360° swiveling head for increased versatility.
SPECIFICATIONS:
- Motor: 2 HP, 115/230V, single-phase
- Spindle Speeds: 12 (150-3,000 RPM)
- Spindle Taper: R8
- Quill Travel: 5 in.
- Max Distance Spindle to Table: 17-1/2 in. (may vary)
- Table Size: 9-1/2 x 32-1/4 in. (may vary)
- Table Longitudinal Travel: 20-1/2 in. (may vary)
- Overall Dimensions: 47 x 40 x 51 in.
- Weight: 660 lbs.
HOW TO USE:
- Secure Workpiece: Secure your workpiece to the table using clamps or a vise.
- Select Tooling: Choose the appropriate drill bit or milling cutter for your project.
- Set Speed and Depth: Set the desired speed and depth using the controls and DRO system.
- Engage Feed: Lower the quill and engage the feed mechanism (manual or power feed).
- Move Table: Move the table (longitudinally or crosswise) to achieve the desired cut.
- Clear Debris: Regularly clear chips and debris to maintain accuracy and safety.
BENEFITS OF USING Jet JMD-18 Mill/Drill With Newall DP700 DRO (350126):
- Space-saving and Affordable: Offers drilling and milling functionalities in a compact benchtop design.
- Versatility: Handles various tasks from drilling holes to light milling and facing.
- Precision Control: Newall DP700 DRO ensures accurate positioning of the table.
- Durability: Built with a cast iron column and powerful motor for long-lasting performance.
- Flexibility: 12 speed options and R8 spindle taper accommodate a wide range of materials and tooling.
FEATURES:
- One-piece cast iron column for stability
- Belt cover with quick slide latch for faster speed adjustments
- Base taper for easier cleaning
- Drill press angle vise
- UL listed motor for safety
- Extra-large worktable
- Positive quick-stop knob and internal depth gauge
- 360° swiveling head for increased versatility
- Work lamp for better visibility
- Forward and reverse switch
- Includes various accessories like a drill chuck, chuck arbor, drawbar, drill chuck guard, and an adjustable carbide facemill
