Description

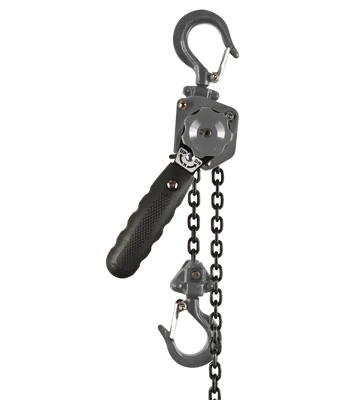

The Jet JLP-025A-15 1/4 Ton Mini-Puller Lever Hoist w/15′ Lift (287102) is a compact and lightweight lever hoist designed for efficient lifting in tight spaces. This 1/4 ton capacity puller features a 15-foot lift and is built with durability and safety in mind.
KEY FEATURES AND BENEFITS:
- Compact Design: Smaller body and lightweight for easy maneuverability in confined areas and low headroom applications.
- Safety Features: Overload indication through hook stretching, Weston-style double pawl brake, and industrial-rated alloy steel hooks for secure lifting.
- Durability: Impact-resistant all-steel construction, grade 80 black oxide coating, and needle bearing design for long-lasting performance.
- Efficiency: Smooth operation and quick lifting with a 3-inch lift per turn.
- Standards Compliance: Meets ANSI/ASME B30.21 and HST-3 safety standards.
SPECIFICATIONS:
- Capacity: 1/4 ton
- Lift: 15 feet
- Headroom: 8-1/4 inches
- Handle Length: 6 inches
- Lever Pull Force: 60 lbs
- Lift per Turn: 3 inches
- Load Chain Dimensions: 4 x 12 mm
- Hook Throat Opening: 1-2/5 inches
- Overall Width: 3-1/9 inches
- Weight: 4-1/2 lbs
HOW TO USE:
- Inspect the puller: Check for any damage or wear before use.
- Attach the load: Securely hook the load to the puller’s hook.
- Position the puller: Ensure the puller is securely positioned and stable.
- Operate the handle: Pull down on the handle to lift the load.
- Lower the load: Release the handle to lower the load.
- Release the load: Carefully remove the hook from the load.
BENEFITS OF USING JET JLP-025A-15 1/4 TON MINI-PULLER LEVER HOIST W/15′ LIFT (287102):
- Efficient lifting in tight spaces
- Increased safety with overload protection and secure hook design
- Durable construction for long-lasting performance
- Easy to operate and maintain
- Compliant with industry safety standards
FEATURES:
- Compact design
- Lightweight
- 1/4 ton capacity
- 15-foot lift
- Overload indication
- Weston-style brake
- Industrial-rated hooks
- All-steel construction
- Grade 80 black oxide coating
- Needle bearings
- 3-inch lift per turn
- ANSI/ASME B30.21 and HST-3 compliant
