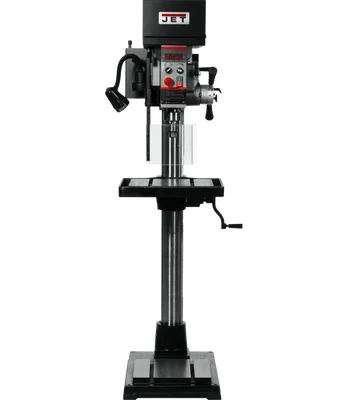

Jet JDPE-20EVSC-PDF 20″ Clutch EVS Drill Press w/Power Dwnfd (354251)

Description

The Jet JDPE-20EVSC-PDF 20″ Clutch EVS Drill Press w/Power Dwnfd (354251) is a heavy-duty 20-inch drill press designed for demanding drilling applications in workshops and professional environments. Featuring a powerful 1.5 HP motor and versatile speed settings, this drill press delivers consistent performance and precise control for a variety of drilling tasks.

KEY FEATURES AND BENEFITS:

• Power Downfeed: Ensures precise control and reduces operator fatigue during heavy drilling applications. Three-speed settings allow for fine-tuning feed rate.
• Variable Speed (50-2000 RPM): Offers versatility for drilling a wide range of materials and hole sizes.
• High Torque Motor: Delivers consistent power for smooth drilling even in challenging materials.
• Large T-Slot Table: Provides a stable platform for securing your workpiece.
• LED Machine Lamp: Enhances visibility for accurate drilling.
• Durable Cast Iron Construction: Ensures long-lasting performance.
• Emergency Stop Button: Provides added safety for the operator.
• Spindle Guard: Protects users from flying debris.
• Forward and Reverse Switch: Enables easy tapping operations.

SPECIFICATIONS:

• Drilling Capacity:
  • Cast Iron: 1-1/4″
  • Mild Steel: 1-1/8″
  • Tapping (Mild Steel): 5/8″
• Spindle Travel:
  • Manual: 5″
  • Power Downfeed: 4-1/4″
• Spindle Speeds: Variable (50-2000 RPM)
• Quill Diameter: 2.16″
• Swing: 19-11/16″
• Column Diameter: 4″
• Spindle Taper: MT-3
• Motor: 1.5 HP, 115V, Single-Phase
• Weight: 493 lbs

HOW TO USE:

1. Secure your workpiece: Clamp your workpiece firmly to the drill press table using a vise or hold-down clamps. Ensure it’s properly positioned for the desired hole location.
2. Adjust the table height: Raise or lower the table using the hand crank until the drilling depth aligns with your markings.
3. Set the speed and feed rate: Choose the appropriate speed based on the material and hole size. Select the desired power downfeed setting for heavy drilling.
4. Install the drill bit: Select the correct drill bit size for your application and tighten it securely in the chuck.
5. Start drilling: Engage the power feed and lower the quill to drill the hole. Maintain steady pressure and avoid applying excessive force.
6. Clear debris: Regularly stop and clear metal chips from the hole to prevent binding and ensure accurate drilling.
7. Stop the drill press: Once finished, turn off the power and raise the quill.

BENEFITS OF USING THE Jet JDPE-20EVSC-PDF 20″ Clutch EVS Drill Press w/Power Dwnfd (354251):

• Increased productivity: Power downfeed and variable speed allow for faster and more efficient drilling.
• Improved accuracy: Rigid construction and precise controls ensure accurate hole placement.
• Versatility: Handles a wide range of drilling tasks in various materials.
• Durability: Built to withstand heavy-duty use in workshops and professional environments.
• Safety features: Emergency stop button and spindle guard promote safe operation.

FEATURES:

• Power downfeed
• Variable speed
• High torque motor
• Large T-slot table
• LED machine lamp
• Durable cast iron construction
• Emergency stop button
• Spindle guard
• Forward and reverse switch
