Description

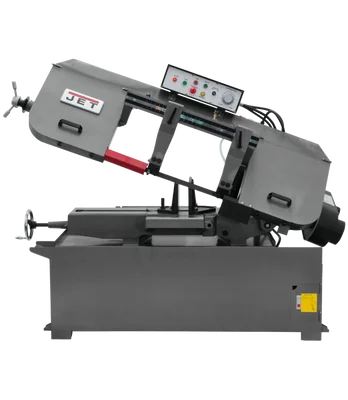

Jet HSB-1321W 3HP 3PH 13×21″ Semi-Auto Horizontal Band Saw (414471) is a heavy-duty 13″ x 21″ semi-automatic horizontal band saw designed for efficient metal cutting applications. Packed with features for both precision and user-friendliness, this saw is ideal for fabrication shops and machine shops.
KEY FEATURES AND BENEFITS:
- Powerful 3 HP motor delivers smooth cutting performance.
- Variable speed control allows for optimal blade speed based on material.
- Semi-automatic operation with automatic shut-off after cut improves efficiency.
- Hydraulic downfeed ensures precise blade control during cutting.
- Coolant system extends blade life and improves cut quality.
- Quick-positioning vise simplifies material setup.
- Durable construction with cast iron band wheels for long-lasting use.
SPECIFICATIONS:
- Cutting Capacity (W x D): 13 x 21 in.
- Motor: 3 HP, 230/460V, 3-Phase
- Blade Speeds: 80 – 260 SFPM
- Blade Size: 1″ x .035″ x 156″ (or 1-1/4″ x .042″ x 161-1/2″, verify for specific variant)
- Overall Dimensions (L x W x H): 84 x 32-1/2 x 55 in. (verify for specific variant)
- Weight: 1276 lbs. (approximate)
HOW TO USE:
- Preparation: Secure the material in the vise, ensuring proper clamping pressure. Select the appropriate bi-metal blade for the material and cutting application. Adjust the blade tension according to the manufacturer’s recommendations.
- Cutting: Power on the saw and adjust the variable speed control to the desired setting for the material. Engage the feed mechanism and guide the material into the blade using the vise. The saw will automatically shut off after completing the cut.
- Post-cut: After finishing the cut, power off the saw and allow the blade to come to a complete stop before raising the saw head. Clean any chips or debris from the work area and the machine.
BENEFITS OF USING Jet HSB-1321W 3HP 3PH 13×21″ Semi-Auto Horizontal Band Saw (414471):
- Increased cutting efficiency with semi-automatic operation.
- Precise cuts due to variable speed control and hydraulic downfeed.
- Extended blade life with coolant system and self-propelled blade brush.
- Reduced setup time with quick-positioning vise.
- Durable construction for demanding metal cutting applications.
FEATURES:
- Built-in, self-propelled blade brush (extends blade life)
- Carbide blade guides with roller bearings (smooth blade tracking)
- Coolant distributed through blade guides (improves cut quality)
- Fully-adjustable hydraulic downfeed (precise blade control)
- Quick-positioning vise (faster setup)
- Safety switch shuts off motor if blade breaks
- Cast iron band wheels (durable construction)
- Adjustable material stop
