Description

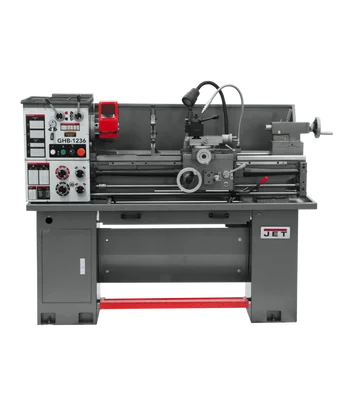

The Jet GHB-1236 Geared Head Bench Lathe with Stand & Foot Brake (321236) is a precision-engineered geared head bench lathe designed for both professionals and hobbyists. This versatile machine excels at cutting and tapering with exacting accuracy, making it perfect for various metalworking projects. Its robust construction and comprehensive features ensure durability and consistent performance.
KEY FEATURES AND BENEFITS:
- Precision and Durability: Induction hardened ground bed-ways and high-quality hardened steel gears provide exceptional accuracy and longevity.
- Enhanced Safety: The integrated footbrake, emergency stop, and chuck guard prioritize user safety during operation.
- Wide Range of Applications: With a wide range of spindle speeds (75-1400 RPM), 48 longitudinal and 36 cross feed rates, and the ability to cut both inch and metric threads, this lathe is adaptable to diverse projects.
- Complete Package: The lathe includes a 6″ 3-jaw chuck, an 8″ 4-jaw chuck, a 10″ face plate, steady and follow rests, a quick-change tool post, a 5-piece set of holders, an LED work lamp, and more, making it ready for immediate use.
SPECIFICATIONS:
- Swing Over Bed: 12 inches
- Swing Over Cross Slide: 7-1/2 inches
- Swing Through Gap: 18 inches
- Distance Between Centers: 33 inches
- Spindle Bore: 1.575 inches
- Spindle Mount: D1-4
- Number of Spindle Speeds: 9
- Motor: 2 HP, 230V, Single Phase
HOW TO USE:
- Preparation: Ensure the lathe is properly mounted on its stand and connected to a power source. Check that all included accessories are in place and lubricated.
- Workpiece Setup: Securely mount your workpiece in the chuck or between centers.
- Tool Selection: Choose the appropriate cutting tool for your desired operation.
- Speed and Feed Selection: Consult the lathe’s manual to determine the correct spindle speed and feed rate for your material and cutting tool.
- Cutting Operation: Begin cutting your workpiece, using the carriage handwheel and cross slide to control the tool’s movement.
- Finishing: After completing the cutting operation, deburr and polish your workpiece as needed.
BENEFITS OF USING THE Jet GHB-1236 Geared Head Bench Lathe with Stand & Foot Brake (321236):
- Accurate Results: Precision components and construction ensure consistent, accurate results in your metalworking projects.
- Increased Productivity: The lathe’s efficient design and user-friendly features streamline your workflow.
- Safe Operation: Built-in safety features minimize the risk of accidents.
- Versatility: The wide range of threading and feeding options, combined with the included accessories, allow you to tackle a variety of projects.
FEATURES:
- Precision induction hardened and ground bedway
- High-quality steel hardened gears in headstock
- Lead screw cover
- Cast iron stand
- Foot brake
- Emergency stop
- Chuck guard
- Enclosed gearbox for quiet operation
- Adjustable gibs in carriage and slideways
- Backlash adjustment for compound and cross slide
