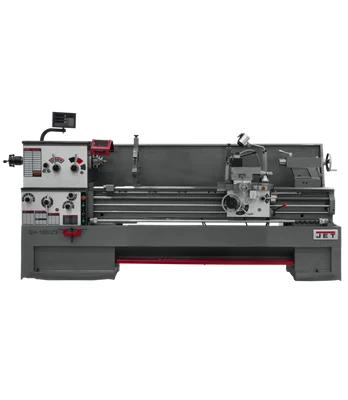

Jet GH-1880ZX Lathe w/Newall DP700 DRO & Collet Closer (321583)

Description

Elevate your metalworking with the Jet GH-1880ZX Lathe w/Newall DP700 DRO & Collet Closer (321583) for enhanced precision and control. This heavy-duty lathe boasts a powerful 7.5 HP, 3-phase motor to tackle demanding projects with ease. Its large 3-1/8″ spindle bore accommodates bigger workpieces, while the one-piece cast iron base absorbs vibration for accurate cuts.

KEY FEATURES AND BENEFITS:

• Effortless Threading: The innovative universal gearbox eliminates the need for manual gear changes, allowing you to achieve inch, metric, diametral, and module pitch threads efficiently.
• Built for Stability & Accuracy: The JET GH-1880ZX features a one-piece cast iron base that minimizes vibration during operation, ensuring clean and precise results. Additionally, the high-quality ANSI Class 50 wear-resistant cast iron bed ways provide a stable platform for your projects.
• Designed for Efficiency: The JET GH-1880ZX incorporates a fully integrated coolant system to regulate temperature and extend tool life. The five-position automatic carriage stop further enhances productivity by allowing you to set repetitive machining positions quickly.
• Versatility at Your Fingertips: The T-slotted compound slide with a four-way tool post offers exceptional versatility for various machining tasks. The removable gap allows you to handle large diameter workpieces, expanding your project capabilities.
• Standard Equipment Included: This lathe comes equipped with everything you need to get started, including a 10″ 3-jaw scroll chuck with top reversing jaws, a 12″ face plate, a 5-piece quick change tool post set, a follow rest, a large capacity steady rest with ball bearing tips, a live center, and more.
• Digital Readout (DRO) and Collet Closer: This specific model also includes a Newall DP700 DRO for precise positioning and a Collet Closer for secure holding of round stock.
• Safety First: The JET GH-1880ZX prioritizes safety with an E-Stop button on the carriage for immediate power shutdown in case of emergencies.

SPECIFICATIONS:

• Product Name: Jet GH-1880ZX Lathe w/Newall DP700 DRO & Collet Closer
• Model Number: 321583
• Capacity: 3-1/8″ spindle bore, 18″ swing over bed
• Motor: 7.5 HP, 3-phase
• Construction: One-piece cast iron base, ANSI Class 50 wear-resistant cast iron bed ways
• Additional Features: Universal gearbox, fully integrated coolant system, T-slotted compound slide with four-way tool post, removable gap
• Included Accessories: 10″ 3-jaw scroll chuck, 12″ face plate, 5-piece quick change tool post set, follow rest, large capacity steady rest with ball bearing tips, live center, Newall DP700 DRO, Collet Closer

HOW TO USE:

• Step 1: Position the lathe on a stable, level surface and secure it using the included mounting pads and levelers.
• Step 2: Connect the lathe to a compatible 3-phase power supply.
• Step 3: Install the appropriate chuck (e.g., 3-jaw or 4-jaw) and secure your workpiece in the spindle bore.
• Step 4: Utilize the universal gearbox to select the desired thread cutting option and adjust the speed settings accordingly.
• Step 5: Use the one-shot lubrication system to ensure smooth operation and prolong the life of the machine components.
• Step 6: Engage the jog function and centrally located controls for precise adjustments and operation.
• Step 7: Monitor the coolant system to keep the work area clean and the cutting tools cool.
• Step 8: Use the removable gap feature when turning larger diameter objects and utilize the steady rest for additional support.
• Step 9: Follow all safety procedures, including using the E-Stop button for immediate power shutdown in case of emergencies.

BENEFITS OF USING THE JET GH-1880ZX LATHE:

• Powerful 7.5 HP motor for handling heavy-duty metalworking tasks with ease.
• Large 3-1/8″ spindle bore and removable gap for accommodating a variety of workpiece sizes.
• Universal gearbox provides flexibility in thread cutting without the need for gear changes.
• Hardened and ground bed ways ensure precision and longevity of the machine.
• Comprehensive set of accessories enhances the lathe’s functionality for various applications.
• One-piece cast iron base and integrated coolant system maintain machine stability and cleanliness.
• Digital readout (DRO) and collet closer enhance precision and secure holding of round stock.
• User-friendly features like the one-shot lubrication system and centrally located controls for ease of use.
• Safety-focused design with an E-Stop button for immediate power shutdown during emergencies.

FEATURES:

• Large 3-1/8″ spindle bore for handling substantial workpieces.
• 7.5 HP motor for powerful performance in demanding metalworking applications.
• Universal gearbox allows for thread cutting in inch, metric, diametral, and module pitches without manual gear changes.
• One-piece cast iron base provides stability, absorbing vibration for clean, precise cuts.
• Removable gap bed expands turning capacity, allowing for the machining of larger diameter objects.
• Hardened and ground bed ways made of ANSI Class 50 wear-resistant cast iron for durability.
• Comes with a variety of standard accessories, including 3-jaw and 4-jaw chucks, a face plate, a four-way tool post, a follow rest, and a steady rest.
• Fully integrated coolant system with splash guard and return to keep the work area clean and tools cool.
• One-shot lubrication system for simplified maintenance and reduced friction on bed sliding surfaces.
• Includes Newall DP700 DRO for precise positioning and a collet closer for secure holding of round stock.
• Safety features such as the E-Stop button for immediate power shutdown during emergencies.
