Description

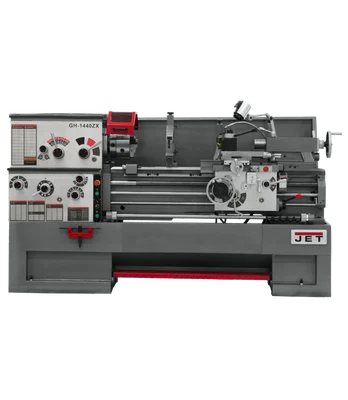

The Jet GH-1440ZX Lathe w/ACU-RITE 203 DRO & Taper Attachment (321507) is a high-performance machine built for demanding metalworking applications. Its 7-1/2 HP, 3-phase motor provides ample power to handle tough jobs, while the one-piece cast iron base absorbs vibration for clean, accurate cuts. The large 3-1/8″ bore spindle is supported by tapered and ball bearings for smooth operation and long life.
KEY FEATURES AND BENEFITS:
- Versatile Threading: Universal gearbox allows inch, metric, diametral, and module pitch threads without gear changes.
- Large Diameter Machining: Removable gap bed facilitates machining of large diameter workpieces.
- Precision Enhancements: ACU-RITE 203 DRO provides precise positioning for accurate cuts. One-shot lubrication and Turcite-B on bed sliding surfaces ensure smooth travel and reduced wear.
- Efficient Cooling: Fully integrated coolant system maintains tool and workpiece temperature, improving tool life and chip control.
- Productivity Features: Five-position automatic carriage stop and large, easy-to-use foot brake enhance workflow and safety.
SPECIFICATIONS:
- Swing: 14″ swing over bed
- Distance Between Centers: 40″
- Spindle Bore: 3-1/8″
- Motor: 7-1/2 HP, 3-phase electric motor
- Threading Capabilities: Inch, metric, diametral, module pitch threads
- Additional Features: Taper attachment, ACU-RITE 203 DRO
HOW TO USE:
Follow these steps for a simple guide on how to use the Jet GH-1440ZX Lathe:
- Ensure proper setup and safety precautions are in place.
- Utilize the universal gearbox for seamless threading adjustments.
- Secure the workpiece using the provided chucks or face plate.
- Maintain smooth operation with regular one-shot lubrication and Turcite-B.
- Utilize the removable gap bed for machining large diameter workpieces.
BENEFITS OF USING Jet GH-1440ZX Lathe w/ACU-RITE 203 DRO & Taper Attachment (321507):
- High-performance machine suitable for demanding metalworking applications.
- Precise positioning with ACU-RITE 203 DRO and efficient cooling with integrated coolant system.
- Enhanced productivity with features like automatic carriage stop and user-friendly controls.
- Comprehensive accessories included for immediate use.
FEATURES:
- Robust one-piece cast iron base for vibration absorption.
- Large 3-1/8″ bore spindle supported by tapered and ball bearings.
- ACU-RITE 203 DRO for precise positioning and measurement.
- Fully integrated coolant system for maintaining optimal tool and workpiece temperatures.
- Five-position automatic carriage stop and large foot brake for enhanced productivity and safety.
