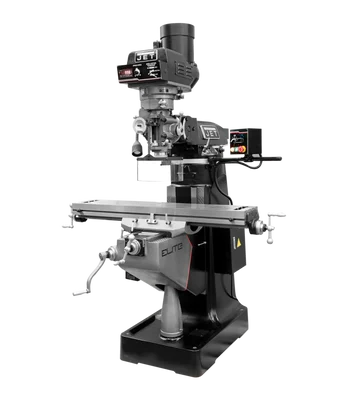

Jet EVS-949 Mill w/3-Axis ACU-RITE 203 (Quill) DRO (894316)

Description

The Jet EVS-949 Mill w/3-Axis ACU-RITE 203 (Quill) DRO (894316) is a vertical knee mill designed for machinists demanding precision and reliability. This feature-packed mill boasts a high-performance spindle assembly with class 7210 bearings, minimizing runout to a mere 0.00012″ for exceptional accuracy. The chromium molybdenum spindle is fully hardened for durability and precisely ground to maintain strict tolerances during even the most demanding projects.

KEY FEATURES AND BENEFITS:

• Built to Last:
  • Certified Meehanite castings provide a rigid base for vibration dampening and lasting accuracy.
  • The Y and Z-axis ways are hand-scraped to a minimum of 16 points per square inch, ensuring superior oil retention.
  • An automatic lubrication system delivers oil every 30 minutes, minimizing wear and tear.
• Designed for the Operator:
  • Safety is paramount with the Jet 894316 EVS-949. It comes equipped with a spindle safety guard, an electronic spindle brake to prevent accidental startups, and an emergency stop button for immediate machine halt.
  • The 3-axis ACU-RITE 203 DRO (Digital ReadOut) simplifies positioning and measurement of the quill for efficient operation.

SPECIFICATIONS:

• The Jet 894316 EVS-949 Mill:
  • High-performance spindle assembly with class 7210 bearings, minimizing runout to 0.00012″.
  • Chromium molybdenum spindle fully hardened for durability.
  • Precisely ground spindle maintains strict tolerances.
  • Variable speed control for machining a wide range of materials.
  • Heat-treated and polished lead screws with thrust bearings for smooth table movements under load.
  • Advanced double nut design minimizes table and saddle backlash for precise lateral control.
  • Variable speed pulleys are balanced for reduced vibration and smooth speed transitions.
  • Hardened and ground table provides a stable platform for workpieces.
  • Stainless steel Y-axis way cover for extended protection.
  • 3-axis ACU-RITE 203 DRO for precise positioning and measurement.

HOW TO USE:

Follow these steps to use the Jet EVS-949 Mill:

1. Ensure all safety features, including the spindle safety guard, are in place.
2. Set the variable speed control to the appropriate setting for your material.
3. Utilize the 3-axis ACU-RITE 203 DRO for precise quill positioning and measurement.
4. Monitor and maintain the automatic lubrication system to ensure optimal performance.
5. In case of emergency, use the electronic spindle brake and emergency stop button to halt the machine immediately.

BENEFITS OF USING Jet EVS-949 Mill w/3-Axis ACU-RITE 203 (Quill) DRO (894316):

• Versatile and high-precision machine suitable for professional machinists, workshops, and educational institutions.
• Robust construction and commitment to accuracy ensure reliable performance in any metalworking environment.

FEATURES:

• Wide range of features focusing on precision, durability, and operator safety.
