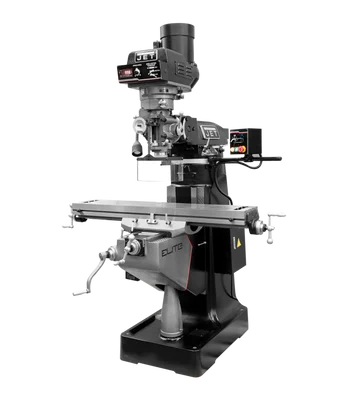

Jet EVS-949 Mill 3-Ax Newall DP700(Quill) DRO Servo XYZ Pwrfd (894427)

Description

Jet EVS-949 Mill 3-Axis Newall DP700(Quill) DRO Servo XYZ Pwrfd (894427) is a professional-grade milling machine designed for machinists who require exceptional precision and control.

KEY FEATURES AND BENEFITS:

• Unmatched Accuracy: The Jet EVS-949 boasts a meticulously designed spindle assembly with high-quality bearings, minimizing runout for achieving strict tolerances in your projects.
• Smooth Operation: Hand-scraped ways and heat-treated lead screws ensure smooth table and quill movements for optimal control and finish quality.
• Durability Built In: The milling machine features a hardened steel quill, vari-disc key for wear resistance, and a robust construction for long-lasting performance.
• Automated Efficiency: Servo-driven X, Y, and Z-axis powerfeeds enable precise and efficient machining with minimal operator intervention.
• Precise Positioning: The integrated 3-axis Newall DP700 DRO system provides real-time digital readouts for accurate positioning of your workpiece.
• Enhanced User Experience: Features like a variable speed drive with balanced pulleys, automatic lubrication, and a hardened table contribute to a user-friendly and efficient machining experience.

SPECIFICATIONS:

• Digital Readout: Newall DP700
• Powerfeed: X, Y & Z-Axis
• Table Size (L x W) (In.): 9 x 49
• Spindle Taper (In. x TPI): R-8
• Quill Diameter (In.): 3-3/8
• Number of Spindle Speeds: Electronic Variable
• Range of Spindle Speeds (RPM): 60 – 5,000
• Quill Down Feed Rates (IPR): 0.0015 – 0.003 – 0.006
• Spindle Travel (In.): 5
• Head Movement (Deg.): 90° R & L, 45° F & B
• Max Distance Spindle to Table (In.): 18-3/4
• Distance Spindle to Column (Max.) (In.): 21-2/5
• Distance Spindle to Column (Min.) (In.): 6-1/2
• Collet Capacity: 1/8 – 7/8
• Table Longitudinal Travel (In.): 36
• Table Cross Travel (In.): 12
• T-Slots Number and Size (In.): 3 and 5/8
• T-Slot Centers (In.): 2-1/2
• Work Table Weight Capacity (Lbs.): 550
• Travel of Knee (In.): 16
• Travel of Ram (In.): 14
• Motor (HP): 3 HP, 230V, 3 Ph
• Ampearge Draw @ 230V 3Ph: 18
• Prewired (V.): 230
• Overall Dimensions (L x W x H) (In.): 68 x 63 x 84
• Weight (Lbs.): 2,300
• Number of Axis: 3 (Quill)
• Style (Type): Variable Speed

HOW TO USE:

1. Assembly and Setup: Follow the manufacturer’s instructions for proper assembly and installation of the Jet EVS-949 mill. Ensure the machine is level, lubricated, and properly grounded before operation.
2. Workpiece Setup: Secure your workpiece to the mill table using a vise or clamps appropriate for the size and material.
3. Tooling Selection: Select the appropriate cutting tool (milling cutter, drill bit, etc.) based on the material and desired operation. Ensure proper installation and tightening in the spindle.
4. Speed and Feed Adjustments: Consult the cutting tool manufacturer’s recommendations and material specifications to set the appropriate spindle speed and feed rate for your project.
5. Operation: Engage the spindle and power feeds according to your chosen operation (milling, drilling, etc.). Utilize the hand wheels or DRO for precise positioning of the cutting tool and workpiece.

BENEFITS OF USING Jet EVS-949 Mill 3-Axis Newall DP700(Quill) DRO Servo XYZ Pwrfd (894427):

• Achieve strict tolerances: The high-precision design allows for accurate machining of critical components.
• Increased productivity: Servo-driven power feeds and efficient design elements streamline your workflow.
• Enhanced control: The DRO system and smooth table movements provide exceptional control for intricate tasks.
• Reduced operator fatigue: Automated features minimize manual operation for a more comfortable user experience.
• Durable performance: The robust construction ensures long-lasting reliability in your machine shop.

FEATURES:

• High-accuracy spindle assembly
• Hand-scraped ways for smooth movement
• Hardened steel quill for increased strength
• Heat-treated and polished lead screws
• Advanced double nut design for precise control
• Vari-disc key for wear resistance
• Balanced variable speed pulleys
• Ball bearing supported motor shaft
• Hardened and ground table
• Automatic lubrication system
• Stainless steel way cover
• 3-axis Newall DP700 DRO for precise positioning
• Servo X, Y, Z-axis powerfeeds
