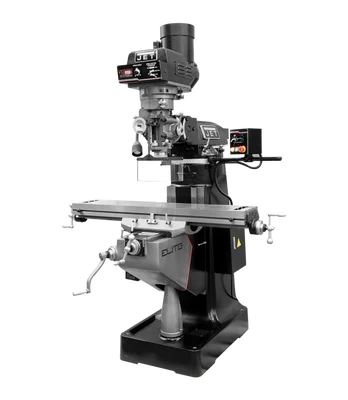

Jet EVS-949 Mill 2-Axis ACU-RITE 303 DRO XY Axis Powerfeed (894334)

Description

Jet EVS-949 Mill 2-Axis ACU-RITE 303 DRO XY Axis Powerfeed (894334) is a professional-grade milling machine engineered for demanding tasks. Built with a focus on accuracy, durability, and operator safety, this mill is ideal for workshops and manufacturing environments alike.

KEY FEATURES AND BENEFITS:

• Unwavering Precision: The heart of the EVS-949 is its spindle, meticulously crafted with class 7210 (P4, ABEC-7) precision angular bearings, ensuring a spindle taper runout of just 0.00012″. The chromium molybdenum spindle, fully hardened and ground, maintains strict tolerances for consistent and reliable results.
• Built to Last: Hand-scraped Y and Z-axis ways enhance oil retention and ensure smooth, precise movements. The hardened and ground table provides a stable platform for machining various materials, while heat-treated lead screws and an advanced double nut design eliminate backlash for precise control.
• Efficient Operation: The 2-axis ACU-RITE 303 DRO and X, Y-axis power feeds streamline workflow, enabling accurate positioning and effortless movement. The USA-made power draw bar simplifies tool changes, and electronic variable speed control allows precise RPM adjustments.
• Additional Features:
  • Patented vari-disc key for enhanced wear resistance
  • Ground and balanced variable speed pulleys for smooth operation
  • Automatic lubrication system for reduced maintenance
  • Stainless steel Y-axis way cover for added protection
  • Electronic spindle brake for safety
  • CSA Group certified for safety
  • Includes spindle safety guard and halogen machine lamp

SPECIFICATIONS:

• Digital Readout: ACU-RITE 303
• Powerfeed: X, Y Axis
• Table Size: 9 x 49 inches
• Spindle Taper: R-8
• Spindle Speeds: 60 – 5,000 RPM
• Motor: 3 HP, 230V, 3 Phase
• Amperage Draw @ 230V 3Ph: 18
• Collet Capacity: 1/8 – 7/8 inches
• Distance Spindle to Column (Max.): 21-2/5 inches
• Max Distance Spindle to Table: 18-3/4 inches
• Number of Axis: 2
• Overall Dimensions (L x W x H): 68 x 63 x 84 inches
• Power Draw Bar: USA Made
• Quill Diameter: 3-3/8 inches
• Quill Down Feed Rates (IPR): 0.0015 – 0.003 – 0.006
• Range of Spindle Speeds: 60 – 5,000 RPM
• Spindle Travel: 5 inches
• Style (Type): Variable Speed
• T-Slot Centers: 2-1/2 inches
• Table Cross Travel: 12 inches
• Table Longitudinal Travel: 36 inches
• Travel of Knee: 16 inches
• Travel of Ram: 14 inches
• Weight: 2300 lbs

BENEFITS OF USING Jet EVS-949 Mill 2-Axis ACU-RITE 303 DRO XY Axis Powerfeed (894334):

• Precision, durability, and operator safety designed for demanding tasks
• Efficient workflow with integrated DRO and power feeds
• Reduced maintenance with automatic lubrication system
• Enhanced wear resistance and safety features for peace of mind

FEATURES:

• High-precision spindle with minimal taper runout
• Hand-scraped ways for smooth, precise movements
• Advanced control features for efficient operation
• Comprehensive safety enhancements
