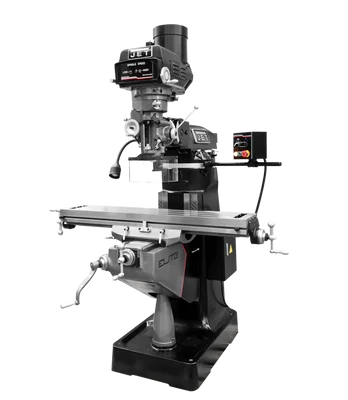

Jet ETM-949 Mill 3-Axis Newall DP700 (Q) DRO Servo XYZ Pwrfd (894227)

Description

The Jet ETM-949 Mill 3-Axis Newall DP700 (Q) DRO Servo XYZ Pwrfd (894227) is a high-performance knee mill designed for precision machining. Packed with features, it excels in various milling tasks for professional machinists and demanding hobbyists.

KEY FEATURES AND BENEFITS:

• High-precision spindle assembly with class 7210 bearings and minimal spindle taper runout (0.00012″).
• Hand-scraped ways ensure smooth movement and precise control.
• Rigid Meehanite® castings maintain tolerances and rigidity over time.

SPECIFICATIONS:

• Table Size: 9″ x 49″
• Spindle Taper: R-8
• Quill Diameter: 3-3/8″
• Spindle Travel: 5″
• Motor: 3 HP, 3-phase
• Weight: 2420 lbs

HOW TO USE:

1. Ensure the mill is securely set up and stable.
2. Power on the mill and adjust spindle speeds (60-4,500 RPM) based on material requirements.
3. Use the Newall DP700 DRO for precise positioning on X, Y, and Z axes.
4. Engage servo-driven power feeds for automated movements.
5. Monitor operations and utilize safety features such as the spindle safety guard and electronic spindle brake.
6. Regularly maintain the automatic lubrication system for optimal performance and longevity.

BENEFITS OF USING Jet ETM-949 Mill 3-Axis Newall DP700 (Q) DRO Servo XYZ Pwrfd (894227):

• Enhanced efficiency with servo-driven power feeds and variable speed spindle motor.
• Durable construction ensures long-term reliability and stability.
• Precision machining capabilities suitable for various materials and applications.

FEATURES:

• Digital readout (Newall DP700) for precise positioning.
• Hardened and ground table provides a stable and wear-resistant work surface.
• Heat-treated and polished lead screws ensure smooth table movement.
• Advanced double nut design eliminates table backlash for precise movements.
• CSA/CUS certified for strict safety compliance.
