Description

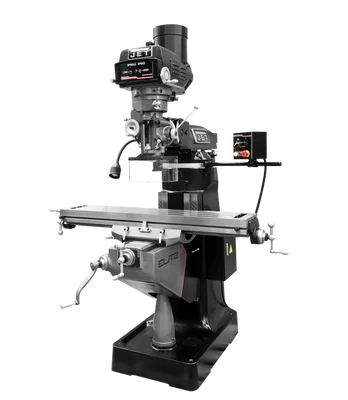

The Jet ETM-949 Mill 3-Axis ACURITE 203 (Quill) DRO Servo X Pwrfd (894188) is a professional-grade vertical milling machine designed for machinists who demand precision, durability, and safety.
KEY FEATURES AND BENEFITS:
- High-precision spindle assembly with class 7210 (P4, ABEC-7) bearings
- Industry-leading spindle taper runout of 0.00012″
- Chromium-Molybdenum spindle, fully hardened and ground
- Induction hardened, chromed, and precision ground one-piece steel quill
- Hand-scraped Y and Z-axis ways for smooth movement and optimal oil retention
- Certified Meehanite® castings for dimensional stability and rigidity
- Stainless steel Y-axis way cover for enhanced protection
- Heat-treated and polished lead screws with thrust bearings for smooth table movements
- Advanced double nut design eliminates backlash
- Variable speed pulleys for smooth speed transitions
SPECIFICATIONS:
- 3-axis ACU-RITE 200S DRO
- X-axis power feed for efficient operation
- USA-made power drawbar for simplified tool changes
- 9″ x 49″ hardened and ground table
- Spindle taper: Industry-leading 0.00012″
- Table size: 9″ x 49″
- Motor: 3 HP, 230/460V, 3 Ph
HOW TO USE:
1. Ensure all safety guards are in place and functional.
2. Power on the machine and set the desired spindle speed using the variable speed pulleys.
3. Use the ACU-RITE 200S DRO to accurately position the milling head.
4. Engage the X-axis power feed for precise material feeding.
5. Monitor operations closely and use the emergency stop button if necessary.
6. Perform regular maintenance as per the user manual guidelines.
BENEFITS OF USING JET 894188 ETM-949 MILL:
- Exceptional precision and accuracy
- Durable construction for long-term reliability
- Enhanced safety features for operator protection
- Efficient and precise machining capabilities
FEATURES:
- High-precision spindle assembly
- Chromium-Molybdenum spindle
- Induction hardened, chromed, and precision ground quill
- Hand-scraped Y and Z-axis ways
- Certified Meehanite® castings
- Stainless steel Y-axis way cover
- Heat-treated and polished lead screws
- Advanced double nut design
- Variable speed pulleys
