Description

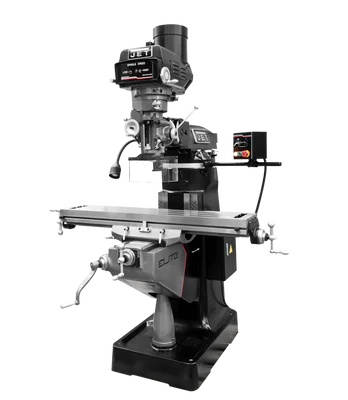

The Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XYZ Powerfeed (894128) sets a new standard for precision and longevity in vertical milling. Designed for demanding professionals and hobbyists, this mill offers exceptional performance and reliability.
KEY FEATURES AND BENEFITS:
- Unmatched Precision:
- Industry-leading spindle taper runout of 0.00012″ with class 7210 (P4, ABEC-7) angular bearings
- Fully hardened and precisely ground Chromium Molybdenum spindle for unwavering accuracy
- Built to Last:
- Hand-scraped ways on Y and Z axes for smooth movement and optimal oil retention
- Heat-treated lead screws with thrust bearings ensure precise table movements under load
- Patented vari-disc key for superior wear resistance
- Optimized for Performance:
- Variable speed pulleys for smooth transitions and reduced vibrations
- Ball bearing-supported motor shaft ensures quiet operation
- Automatic lubrication system maintains smooth operation
- Additional Features:
- 3-Axis ACU-RITE 203 Digital Readout (DRO) for precise measurements on the knee
- Power feeds on X, Y, and Z axes for efficient and accurate machining
- Hardened and ground table for stable machining of diverse materials
- Certified Meehanite® castings for dimensional stability and rigidity
- Electronic spindle brake and spindle safety guard for enhanced operator safety
- CSA/CUS Certified
SPECIFICATIONS:
- Table Size: 9 x 49 inches
- Spindle Taper: R-8
- Quill Diameter: 3-3/8 inches
- Spindle Speeds: Variable, 60 – 4,500 RPM
- Quill Down Feed Rates: 0.0015 – 0.003 – 0.006 IPR
- Travels: Spindle (5 in), Head (90° R&L, 45° F&B), Table Longitudinal (36 in), Table Cross (12 in), Knee (16 in), Ram (14 in)
- Motor: 3 HP, 230/460V, 3 Ph
- Overall Dimensions: 68 x 63 x 84 inches
- Weight: 2420 lbs
HOW TO USE:
Operate the Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XYZ Powerfeed following these steps:
- Ensure all safety guards are in place and secure.
- Power on the mill using the control panel.
- Select the appropriate spindle speed for your material.
- Use the ACU-RITE 203 DRO to set precise measurements.
- Engage the power feeds for X, Y, and Z axes to automate movements.
- Monitor operation and adjust settings as necessary.
- After use, power off the mill and perform any necessary maintenance.
BENEFITS OF USING Jet ETM-949 Mill 3-Axis ACU-RITE 203 (Knee) DRO XYZ Powerfeed (894128):
- Exceptional precision and accuracy
- Durable construction for long-term reliability
- Enhanced safety features for operator protection
- Efficient operation with advanced digital readout and power feeds
FEATURES:
- Industry-leading spindle taper runout
- Hand-scraped ways for smooth movement
- Automatic lubrication system
- 3-Axis ACU-RITE 203 DRO
- X, Y, Z-axis power feeds
- Hardened and ground table
- Certified Meehanite® castings
- Electronic spindle brake
- CSA/CUS Certification
