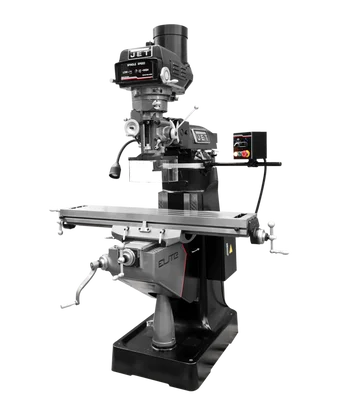

Jet ETM-949 Mill 3-Ax Newall DP700(Quill) DRO Servo XYZ Pwrfd (894228)

Description

The Jet ETM-949 Mill 3-Ax Newall DP700 (Quill) DRO Servo XYZ Pwrfd (894228) is a high-precision vertical milling machine designed for professional machinists and demanding applications. This feature-packed mill delivers exceptional accuracy, durability, and ease of use.

KEY FEATURES AND BENEFITS:

• Precision Machining:
  • Hand-scraped ways for smooth table and headstock travel.
  • High-quality spindle assembly with R8 taper and minimal runout (0.00012″).
  • Digital readout (Newall DP700) for precise positioning.
• Heavy-Duty Construction:
  • Rigid Meehanite castings for vibration-free operation.
  • Automatic lubrication system extends machine life.
  • Durable steel quill for demanding workloads.
• Versatility and Control:
  • Variable speed control allows for tailoring cutting speeds to various materials (60-5,000 RPM).
  • Servo-driven power feeds on X, Y, and Z-axis for effortless material removal.
  • USA-made power drawbar for secure toolholding.

SPECIFICATIONS:

• Table size: 9″ x 49″
• Spindle taper: R8
• Spindle travel: 5″
• Quill diameter: 3-3/8″
• Collet capacity: 1/8″ – 7/8″
• Table travel (longitudinal): 36″
• Table travel (cross): 12″
• Motor: 3 HP, 230/460V 3-phase
• Weight: 2,420 lbs

HOW TO USE:

1. Consult the included manual for detailed setup, operation, and maintenance procedures.
2. Ensure the machine is properly set up and powered with 230/460V 3-phase electricity.
3. Select the appropriate cutting speed using the variable speed control (60-5,000 RPM).
4. Use the digital readout (Newall DP700) for precise positioning of the cutting tool.
5. Engage the servo-driven power feeds on X, Y, and Z-axis for automated material removal.
6. Utilize the USA-made power drawbar for secure toolholding and quick tool changes.
7. Monitor the automatic lubrication system to ensure all components are properly lubricated.

BENEFITS OF USING Jet ETM-949 Mill 3-Ax Newall DP700 (Quill) DRO Servo XYZ Pwrfd (894228):

• Achieve high-precision machining results with exceptional accuracy and minimal runout.
• Experience smooth operation thanks to hand-scraped ways and a robust build.
• Increase productivity and efficiency with servo power feeds and variable speed control.
• Ensure long-lasting machine performance with automatic lubrication and durable construction.
• Tackle demanding projects with confidence thanks to the powerful 3 HP motor and rigid design.

FEATURES:

• Hand-scraped ways
• Variable speed control (60-5,000 RPM)
• Digital readout (Newall DP700)
• Automatic lubrication system
• Power feeds on X, Y, and Z-axis
• USA-made power drawbar
• R8 spindle taper
• 3 HP motor
• Meehanite castings
