Description

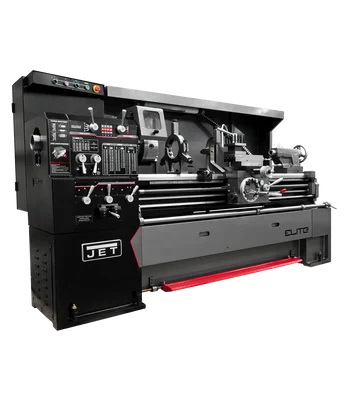

The Jet EGH-1740 w/ ACU-RITE 203 DRO Taper & Collet Closer (892555) is a powerful and versatile machine built for demanding metalworking applications. It combines the strength and durability of Meehanite castings with precision engineering to deliver exceptional machining performance. The large 3-1/8″ spindle bore accommodates a wide range of materials, while the universal gearbox allows for threading in various pitches without gear changes.
KEY FEATURES AND BENEFITS:
- Enhanced Precision and Control: The EGH-1740 comes equipped with an ACU-RITE 203 Digital ReadOut (DRO). This user-friendly system displays the position of the cutting tool in real-time, ensuring accurate cuts and minimizing errors.
- Versatility: Includes a taper attachment and collet closer for greater flexibility when working with different tooling options.
- User Comfort and Efficiency: Features a fully enclosed coolant system to manage cutting fluids effectively. The front-facing chip pan allows for easy chip removal, while the steady rests with ball bearing guides ensure smooth material movement.
- Excellent Illumination: CNC-style lighting provides excellent illumination of the work area, and the full-length splash guard keeps chips and coolant contained.
- Durable Build: Built to last with features like class 7 precision taper roller bearings for minimal spindle runout, hardened and ground gears to reduce vibration, and a wider bed design for increased stability.
- Friction Minimization: Turcite-B coating between the bed ways and carriage minimizes friction, while the anti-backlash cross slide design ensures precise tool positioning.
- Easy Maintenance: The one-shot lubrication system simplifies maintenance, and the overload clutch protects the carriage from damage.
- Safety Features: Nylon safety gears prevent overloading, and the enclosed coolant system promotes a safer work environment. Additionally, the shear pin in the lead screw disengages the feed when overloaded, protecting the machine’s components.
SPECIFICATIONS:
- Model: Jet EGH-1740
- Motor: 7-1/2 HP, 3-Phase
- Spindle Bore: 3-1/8 inches
- Material: Meehanite Castings
- Precision Bearings: Class 7 taper roller bearings
- Bed Design: Wider bed for increased stability
- Friction Coating: Turcite-B on bed ways
HOW TO USE:
Follow these steps to efficiently use the Jet EGH-1740 lathe:
- Ensure the lathe is securely positioned and leveled.
- Power on the lathe and select the appropriate spindle speed.
- Secure your workpiece using the appropriate chuck or faceplate.
- Select and secure your cutting tool in the tool post.
- Use the ACU-RITE 203 DRO to set precise cutting parameters.
- Engage the universal gearbox for threading operations if needed.
- Utilize the taper attachment for conical turning as required.
- Monitor the operation and adjust the coolant system as needed for optimal cutting conditions.
- After use, clean the machine and apply maintenance routines as specified in the manual.
BENEFITS OF USING THE Jet EGH-1740 w/ ACU-RITE 203 DRO Taper & Collet Closer (892555):
- Ideal for professional machinists, hobbyists, and educational institutions.
- Reliable and high-performance for various metalworking projects.
- Extensive features for enhanced productivity and versatility.
- User-friendly design with superior precision and control.
FEATURES:
- Powerful 7-1/2 HP motor for demanding applications.
- Large 3-1/8″ spindle bore for accommodating wide range of materials.
- Universal gearbox for versatile threading without gear changes.
- ACU-RITE 203 DRO for real-time position display.
- Includes taper attachment and collet closer for added tooling versatility.
- Fully enclosed coolant system and front-facing chip pan for effective fluid management and easy chip removal.
- CNC-style lighting for excellent workspace illumination.
- Class 7 precision bearings and hardened gears for reduced vibration and enhanced stability.
- Turcite-B coating and anti-backlash design for minimal friction and precise tool positioning.
- Comprehensive safety features including nylon safety gears and shear pin protection.
