Description

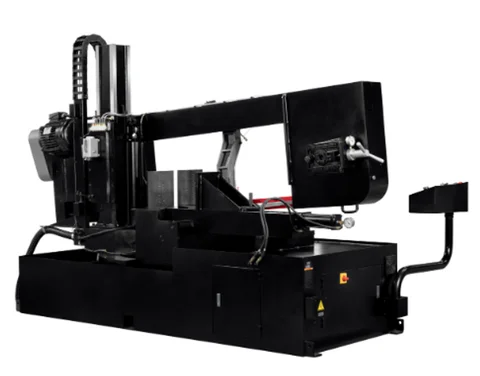

The Jet ECB-1833DMEVS-230 18×33″ Dual Miter EVS Semi-Auto Bandsaw (891170) is a robust bandsaw designed for efficient and accurate cutting of structural steel. Built with heavy-duty construction, it minimizes vibration and deflection, ensuring precise cuts every time.
KEY FEATURES AND BENEFITS:
- Dual Mitering: Cut materials at various angles for versatility and precision.
- Electronic Variable Speed (EVS): Adjust cutting speed (50-297 SFPM) to match different materials.
- Semi-Automatic Functions: Enhance efficiency and reduce operator fatigue with automated features.
- Hydraulic Assist Descent Control: Precisely control blade descent for accurate cuts.
- Auto Table Swivel: Easily position materials for efficient cutting.
- Blade Tension Gauge: Maintain optimal blade tension for consistent performance.
- Heavy-Duty Construction: Reduce vibration and deflection for stability and accuracy.
- Swing-Away Control Box: Flexible operator positioning for comfort and convenience.
SPECIFICATIONS:
- Model Number: ECB-1833DMEVS-230
- Cutting Capacity: 18″ x 33″
- Blade Size: 1.61″ x 0.051″ x 240″
- Blade Speed: 50-297 SFPM
- Motor: 7-1/2 HP, 230V, 3Ph
- Net Weight: 5060 lbs
- Dimensions (L x W x H): 110″ x 75″ x 83″
- Floor Space Required: 110″ x 74″
HOW TO USE:
- Safety First: Wear appropriate safety gear, including eye protection, ear protection, and gloves.
- Prepare the Material: Securely clamp the material to the saw table using the vise.
- Adjust Blade Speed: Set the desired blade speed based on the material being cut.
- Mitering (Optional): Adjust the miter angle if required.
- Lower Blade: Engage the hydraulic assist descent control to lower the blade into the material.
- Cutting: Feed the material into the blade at a steady pace.
- Raise Blade: Once the cut is complete, raise the blade using the semi-automatic function.
- Clear Material: Remove the cut material from the saw table.
BENEFITS OF USING Jet ECB-1833DMEVS-230 18×33″ Dual Miter EVS Semi-Auto Bandsaw (891170):
- Increased Efficiency: Semi-automatic functions and electronic variable speed save time and effort.
- Improved Accuracy: Dual mitering, hydraulic assist descent control, and heavy-duty construction ensure precise cuts.
- Versatility: Handle various materials and cutting angles with ease.
- Durability: Built to last with heavy-duty construction and high-quality components.
- Operator Comfort: Swing-away control box and ergonomic design reduce fatigue.
FEATURES:
- Dual Mitering
- Electronic Variable Speed
- Semi-Automatic Functions
- Hydraulic Assist Descent Control
- Auto Table Swivel
- Blade Tension Gauge
- Heavy-Duty Construction
- Swing-Away Control Box
