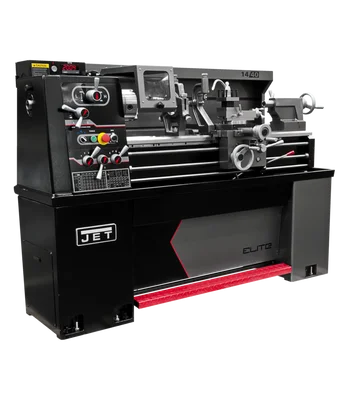

Jet E-1440VS Lathe With ACU-RITE 303 DRO (892461)

Description

Jet E-1440VS Lathe With ACU-RITE 303 DRO (892461) is a versatile and efficient machine designed for various applications. Ideal for schools, small shops, and engineering labs, this lathe offers a compact footprint without compromising performance.

KEY FEATURES AND BENEFITS:

• ACU-RITE 303 DRO: Precise digital readout for accurate measurements and control.
• Electromagnetic Brake: Ensures rapid and safe stopping of the spindle.
• Inverter Drive System: Provides smooth and adjustable spindle speeds for various materials.
• Two-Speed Gearbox: Offers a wider range of spindle speeds for diverse tasks.
• Safety Features: Enclosed splash guard, overload clutch, and electromagnetic foot brake for operator protection.
• Durability: Built with Meehanite castings for long-lasting performance.

SPECIFICATIONS:

• Size: 14 x 40
• Swing Over Bed: 14 inches
• Swing Over Cross Slide: 8-5/8 inches
• Distance Between Centers: 40 inches
• Spindle Bore: 1-1/2 inches
• Spindle Speeds: 40-365 RPM (low), 165-2000 RPM (high)
• Motor: 3 HP, 230V, 3-phase
• Weight: 1653 lbs
• Dimensions: 77 x 30 x 58 inches

HOW TO USE:

• Set up: Place the lathe on a stable, level surface. Connect to a power supply.
• Safety Checks: Ensure all safety guards are in place. Wear appropriate protective gear.
• Workpiece Preparation: Securely mount the workpiece in the chuck or between centers.
• Tool Selection: Choose the correct cutting tool for the material and operation.
• Speed and Feed Settings: Adjust spindle speed and feed rate based on material and desired finish.
• Operation: Engage the spindle and carefully feed the workpiece into the cutting tool. Use the ACU-RITE DRO for precise measurements and control.
• Coolant Application: Apply coolant as needed to prevent overheating and improve tool life.
• Shutdown: Bring the spindle to a complete stop before dismounting the workpiece or making adjustments.

BENEFITS OF USING JET E-1440VS LATHE WITH ACU-RITE 303 DRO (892461):

• Precision: ACU-RITE DRO ensures accurate measurements and cuts.
• Efficiency: Inverter drive and two-speed gearbox provide versatility.
• Safety: Multiple safety features protect the operator.
• Durability: Built with high-quality materials for long-lasting performance.
• Versatility: Suitable for various materials and applications.

FEATURES:

• ACU-RITE 303 DRO
• Electromagnetic brake
• Inverter drive system
• Two-speed gearbox
• Safety features (enclosed splash guard, overload clutch, foot brake)
• Meehanite castings
• LED RPM readout
• CSA/CUS certified
