Description

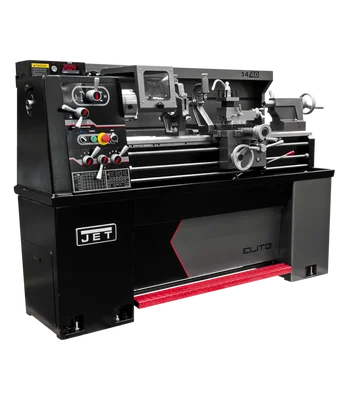

Jet E-1440VS Lathe w/ACU-RITE 303 DRO & Collet Closer (892463) is a precision metalworking machine designed for efficiency and accuracy. This compact lathe packs powerful features, making it suitable for various applications in schools, workshops, and engineering labs.
KEY FEATURES AND BENEFITS:
- Compact Design: Fits into smaller spaces without compromising performance.
- Powerful Motor: Delivers efficient cutting for various materials.
- Variable Speed Control: Offers precise control over spindle speed for different tasks.
- ACU-RITE 303 DRO: Enhances accuracy and precision in measurements.
- Collet Closer: Facilitates quick and easy workpiece changes.
- Safety Features: Includes electromagnetic brake, chuck guards, and enclosed splash guard for operator protection.
- Durable Construction: Certified Meehanite castings ensure longevity and rigidity.
SPECIFICATIONS:
- Model Number: E-1440VS
- Swing Over Bed: 14 inches
- Distance Between Centers: 40 inches
- Spindle Bore: 1-1/2 inches
- Motor: 3 HP, 230V, 3Ph
- Spindle Speed: 40-365 RPM (low), 165-2000 RPM (high)
- DRO: ACU-RITE 303
- Dimensions (L x W x H): 77 x 30 x 58 inches
- Weight: 1653 lbs
HOW TO USE:
- Set Up: Ensure the lathe is securely placed on a level surface. Connect to a power source.
- Safety Checks: Inspect the machine for any damage or loose components. Wear appropriate safety gear.
- Workpiece Preparation: Securely mount the workpiece on the lathe using the chuck or faceplate.
- Tool Selection: Choose the appropriate cutting tool for the material and desired operation.
- Speed and Feed Adjustment: Set the spindle speed and feed rate according to the workpiece material and tool.
- Operation: Engage the spindle and carefully feed the workpiece into the cutting tool.
- Coolant Application: Use coolant as needed to prevent overheating and improve cutting performance.
- Shutdown: Bring the spindle to a complete stop before dismounting the workpiece. Clean the machine and workspace.
BENEFITS OF USING JET E-1440VS LATHE W/ACU-RITE 303 DRO & COLLET CLOSER (892463):
- Increased Efficiency: Powerful motor and variable speed control for faster cutting.
- Improved Accuracy: ACU-RITE 303 DRO ensures precise measurements and cuts.
- Enhanced Safety: Safety features protect the operator from accidents.
- Versatility: Suitable for a wide range of metalworking tasks.
- Durability: Built to last with high-quality materials.
FEATURES:
- Electromagnetic assisted foot brake
- Inverter drive system for variable speeds
- Steady and follow rests with double sealed ball bearings
- Chuck guards for added safety
- Front-facing chip pan for easy cleanup
- Fully lit with enclosed splash guard
- Hardened and ground gears for reduced vibration
- Class 7 precision taper roller bearings
- Overload clutch for added protection
- Certified Meehanite castings for durability
- Heavy-duty stand with full-length foot brake
- LED RPM readout for precise speed control
