Description

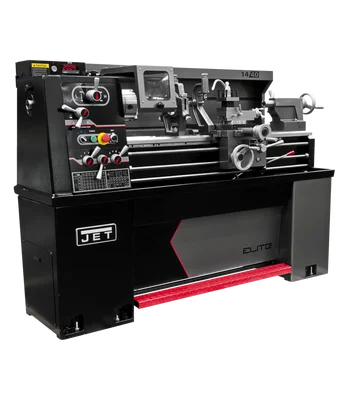

Jet E-1440VS Lathe w/ ACU-RITE 203 CSS DRO (892457) is a compact yet powerful machine designed for schools, small shops, and engineering labs. Packed with features, it offers precision and efficiency in a small footprint.
KEY FEATURES AND BENEFITS:
- Compact Design: Ideal for limited spaces without compromising performance.
- ACU-RITE 203 CSS DRO: Ensures accurate measurements and control.
- Electromagnetic Brake: Provides rapid stopping for enhanced safety.
- Inverter Drive System: Offers infinitely variable spindle speeds for versatile operations.
- Steady and Follow Rests: Supports workpieces for smooth material movement.
- Chuck Guards: Enhance operator safety.
- Front-Facing Chip Pan: Facilitates easy chip removal.
- Two-Speed Gearbox: Allows for low and high-speed operations.
- Hardened and Ground Gears: Reduce vibration and deflection for precision work.
- Class 7 Precision Taper Roller Bearings: Minimize spindle runout for accurate cuts.
- CNC-Style Lighting and Enclosed Splash Guard: Improve visibility and workspace cleanliness.
- Overload Clutch: Protects the carriage from damage.
- Certified Meehanite® Castings: Ensure durability and rigidity.
- Heavy-Duty Stand with Foot Brake: Provides stability and control.
- LED RPM Readout: Offers precise speed monitoring.
- CSA/CUS Certified: Meets safety standards for reliable operation.
SPECIFICATIONS:
- Size: 14 x 40
- Digital Readout: ACU-RITE 203 W/ CSS
- Swing Over Bed: 14″
- Swing Over Cross Slide: 8-5/8″
- Spindle Bore: 1-1/2″
- Spindle Speeds: 0-2,200 RPM
- Threading: 4-112 TPI and 0.45-7.5 mm
- Motor: 3 HP, 230V, 3 Ph
- Weight: 1653 lbs
- Dimensions: 77″ x 30″ x 58″
HOW TO USE:
- Set up the lathe:
- Place the lathe on a stable, level surface.
- Connect it to the power supply and ensure proper grounding.
- Mount the workpiece:
- Secure the workpiece in the chuck or between centers, depending on the operation.
- Select spindle speed:
- Choose the appropriate spindle speed based on the material and desired cutting conditions.
- Engage feed:
- Select the desired feed rate for turning, facing, or threading operations.
- Operate controls:
- Use the control panel to start and stop the lathe, adjust speeds, and engage feeds.
- Monitor cutting process:
- Observe the cutting process for proper chip formation and workpiece condition.
- Coolant application:
- Apply coolant if necessary to improve cutting performance and tool life.
- Safety precautions:
- Always wear appropriate safety gear, such as safety glasses and hearing protection.
- Follow safety guidelines provided in the user manual.
BENEFITS OF USING JET E-1440VS LATHE W/ ACU-RITE 203 CSS DRO (892457):
- Precision Machining: Delivers accurate and repeatable results.
- Versatility: Handles various materials and operations.
- Efficiency: Improves productivity with its features and performance.
- Safety: Prioritizes operator safety with built-in features.
- Durability: Constructed with high-quality materials for long-lasting use.
FEATURES:
- Electromagnetic brake
- Inverter drive system
- Steady and follow rests
- Chuck guards
- Front-facing chip pan
- Two-speed gearbox
- Hardened and ground gears
- Class 7 precision taper roller bearings
- CNC-style lighting
- Enclosed splash guard
- Overload clutch
- Certified Meehanite® castings
- Heavy-duty stand
- LED RPM readout
- CSA/CUS certified
