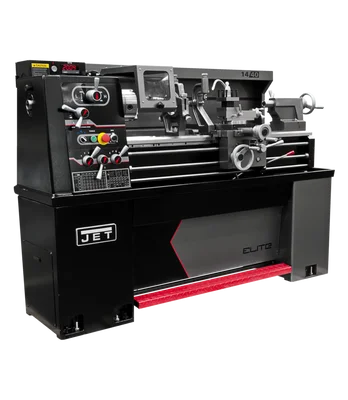

Jet E-1340VS With ACU-RITE 303 DRO With Taper & Collet Closer (892414)

Description

The Jet E-1340VS With ACU-RITE 303 DRO With Taper & Collet Closer (892414) is a powerful and versatile metalworking lathe perfect for schools, small shops, and engineering labs. This space-saving lathe packs professional features into a compact footprint, making it ideal for environments where space is limited.

KEY FEATURES AND BENEFITS:

• Powerful 3 HP motor: Delivers ample power for a wide range of metalworking tasks.
• Variable spindle speeds (0-2200 RPM): Allows for precise control over cutting speeds for different materials.
• ACU-RITE 303 DRO (Digital ReadOut): Provides accurate position measurement for improved machining precision.
• Electromagnetic brake: Ensures rapid stopping for safety and efficiency.
• Certified Meehanite castings: Provide a rigid and stable base for accurate machining.
• Ball-bearing mounted steady rest and follow rest: For smooth material support.
• Taper attachment and collet closer: For increased versatility in workpiece holding.
• Wide range of threads (40 inch, 22 metric): For tackling various threading projects.
• Heavy-duty stand with full-length foot brake: For added stability and operator control.
• Coolant system (included): For effective chip removal and tool lubrication.

SPECIFICATIONS:

• Swing over bed: 13 in
• Swing over cross slide: 7-5/8 in
• Distance between centers: 40 in
• Spindle bore: 1-1/2 in
• Spindle speeds: Variable (0-2200 RPM)
• Motor: 3 HP, 230V, 3-Phase
• Weight: 1433 lbs

HOW TO USE:

1. Preparation: Secure your workpiece in the chuck or between centers. Mount any necessary cutting tools in the tool post. Ensure the safety shield is in place and the coolant system is filled (if using).
2. Power On and Speed Selection: Turn on the lathe and select the desired spindle speed using the variable speed control or the two-speed gearbox for low or high-speed ranges. Refer to cutting speed charts for recommended speeds based on material and tool type.
3. Engaging the Feed: Engage the longitudinal or cross feed levers to move the cutting tool along the desired axis. The DRO readout will display the position change.
4. Machining: With the tool engaged and feed active, begin machining your workpiece. Maintain proper tool pressure and coolant flow for optimal results.
5. Machine Stop: Once machining is complete, disengage the feed, stop the spindle rotation, and power off the lathe.

BENEFITS OF USING Jet E-1340VS With ACU-RITE 303 DRO With Taper & Collet Closer (892414):

• Versatility: Handles a wide range of metalworking tasks, from turning and facing to boring and drilling.
• Precision: Delivers accurate results with variable speed control, DRO for precise measurement, and rigid construction.
• Compact Design: Ideal for space-constrained workshops and labs.
• Durability: Built with high-quality components for long-lasting performance.
• Safety Features: Electromagnetic brake, chuck guard, and coolant system promote safe operation.

FEATURES:

• 3-jaw chuck
• Steady rest and follow rest
• Taper attachment and collet closer
• ACU-RITE 303 DRO
• LED RPM readout
• Hardened and ground gears
• Enclosed splash guard
• Coolant system
• Multiple threading options
