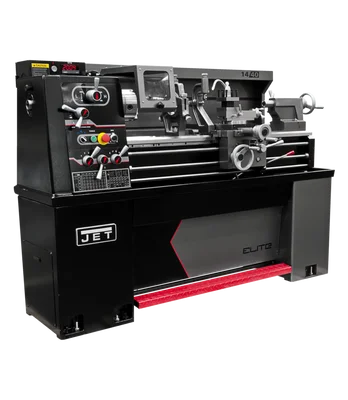

Jet E-1340VS Lathe With ACU-RITE 203 CSS DRO & Collet Closer (892409)

Description

Jet E-1340VS Lathe With ACU-RITE 203 CSS DRO & Collet Closer (892409) is a versatile machine designed for precision metalworking. Built with durability and efficiency in mind, it’s perfect for educational institutions, small workshops, and research facilities. This lathe combines power and accuracy in a compact footprint.

KEY FEATURES AND BENEFITS:

• Compact Design: Maximizes workspace efficiency without compromising performance.
• Certified Meehanite Castings: Ensures rigidity and maintains precision over time.
• Electromagnetic Brake: Provides quick and reliable stops for enhanced safety.
• Inverter Drive System: Offers precise speed control for various applications.
• Steady and Follow Rests: Facilitates smooth material handling and support.
• CNC-Style Lighting: Improves visibility and workspace illumination.
• Safety Features: Includes chuck guards, overload clutch, and electromagnetic brake.
• Easy Chip Removal: Front-facing chip pan simplifies cleanup.
• Precision Components: Hardened gears, Class 7 bearings, and LED RPM readout for accuracy.
• Versatile Speed Range: Two-speed gearbox accommodates different materials and operations.

SPECIFICATIONS:

• Size: 13 x 40
• Spindle Bore: 1-1/2″
• Motor: 3 HP, 230V, 3Ph
• Amperage Draw: 19
• Max Tool Size: 5/8 x 5/8
• Spindle Speed Range: 0-2,200 RPM
• Number of Inch Threads: 40
• Number of Metric Threads: 22
• Inch Thread Range: 4-112 TPI
• Metric Thread Range: 0.45-7.5
• Longitudinal Feed Range: 0.0012-0.0294 IPR
• Cross Feed Range: 0.0003-0.01 IPR
• Number of Feed Rates: 80
• Compound Slide Travel: 3-1/2″
• Length of Gap: 9″
• Overall Dimensions: 67 x 30 x 57″

HOW TO USE:

• Safety First: Wear appropriate safety gear, including eye protection and protective clothing.
• Machine Setup: Ensure the lathe is securely placed on a level surface and properly grounded.
• Workpiece Mounting: Securely mount the workpiece using the chuck or faceplate.
• Tool Selection: Choose the appropriate tool for the desired operation.
• Speed and Feed Settings: Adjust spindle speed and feed rate based on material and operation.
• Engage Drive: Carefully engage the lathe’s drive system.
• Cutting Operation: Perform the cutting operation with steady and controlled movements.
• Coolant Application: Use coolant as needed to prevent overheating and improve tool life.
• Chip Removal: Regularly clear chips from the machine to prevent buildup.
• Shutdown: Bring the machine to a complete stop before dismounting the workpiece or performing maintenance.

BENEFITS OF USING JET E-1340VS LATHE WITH ACU-RITE 203 CSS DRO & COLLET CLOSER (892409):

• Precision Machining: Produces accurate and repeatable results.
• Versatility: Handles a wide range of materials and operations.
• Efficiency: Improves productivity with its compact design and user-friendly features.
• Safety: Prioritizes operator safety with multiple safety features.
• Durability: Built to last with high-quality components.

FEATURES:

• Compact design
• Certified Meehanite castings
• Electromagnetic brake
• Inverter drive system
• Steady and follow rests
• CNC-style lighting
• Safety features
• Easy chip removal
• Precision components
• Versatile speed range
