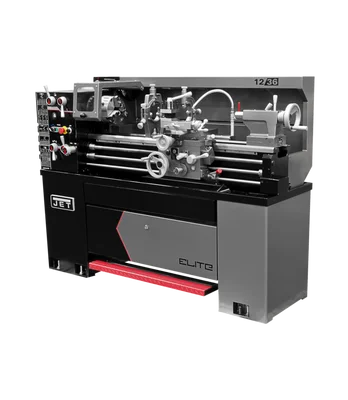

Jet E-1236VS With Taper Attachment and Collet Closer (892302)

Description

The Jet E-1236VS With Taper Attachment and Collet Closer (892302) is a versatile benchtop lathe designed for precision turning in small shops, schools, and engineering labs. This powerful yet compact lathe packs professional features like an inverter drive system for variable spindle speeds (0-2,000 RPM), a two-speed gearbox for low and high-speed ranges, and hardened and ground gears for minimal vibration.

KEY FEATURES AND BENEFITS:

• Variable Speed Control: Achieve optimal cutting speeds for various materials with the inverter drive system.
• Precision Machining: Class 7 precision taper roller bearings minimize spindle runout for accurate results.
• Easy Operation: The LED readout displays spindle speed for clear visibility, while the electromagnetic brake ensures fast stopping.
• Versatility: Cut threads, perform facing operations, and handle larger workpieces with the included taper attachment and collet closer.
• Durable Construction: The lathe features certified Meehanite castings for long-lasting rigidity.

SPECIFICATIONS:

• Swing over bed: 12″
• Swing over cross slide: 7-5/16″
• Spindle taper: MT-5
• Motor: 2 HP, 230V (single-phase or three-phase)
• Overall dimensions: 71″ x 30″ x 60″
• Weight: 1213 lbs
• Includes: 6″ 3-jaw chuck, faceplate, steady rest, follow rest, 4-way tool post, tool box with tools, and more (see full list above)

HOW TO USE:

1. Set Up: Secure the lathe to a sturdy workbench and connect it to the appropriate power source. Install the desired cutting tool in the tool post and adjust the height for proper clearance.
2. Mount the Workpiece: Choose the appropriate chuck or fixture to hold your workpiece securely. Tighten it firmly to the spindle.
3. Adjust Speed and Feed: Select the desired spindle speed based on the material and operation. Engage the appropriate feed rate for the desired cutting depth.
4. Start Machining: Engage the spindle and carefully move the cutting tool against the workpiece to begin turning. Maintain proper control and follow safety guidelines.
5. Stop and Inspect: Once complete, disengage the spindle and allow it to stop completely. Carefully remove the workpiece and inspect it for accuracy.

BENEFITS OF USING Jet E-1236VS With Taper Attachment and Collet Closer (892302):

• Precise Turning: Achieve high-quality results with features like variable speed control and minimal spindle runout.
• Versatility: Handle a wide range of turning operations on metal, wood, or plastic with the included accessories.
• Compact Footprint: Ideal for smaller shops and labs where space is limited.
• Easy to Use: The intuitive controls and digital readout make it user-friendly for both beginners and experienced machinists.
• Durable Construction: Built to last with high-quality components and certified Meehanite castings.

FEATURES:

• Inverter drive system for variable spindle speeds (0-2,000 RPM)
• Two-speed gearbox for low and high-speed ranges
• LED readout for spindle speed
• Electromagnetic brake for rapid stopping
• Hardened and ground gears for reduced vibration
• Class 7 precision taper roller bearings
• Chuck guard for safety
• Coolant system
• Includes a variety of standard equipment
