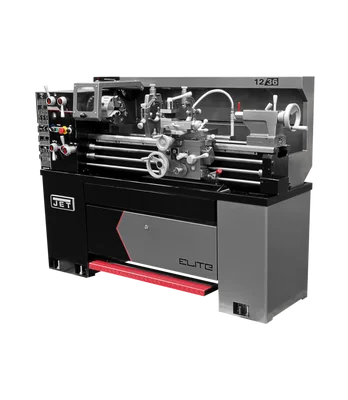

The Jet E-1236VS W/ ACU-RITE 203 CSS DRO W/ Taper & Collet Closer (892310) is a powerful and compact metalworking lathe, perfect for small shops, schools, and engineering labs. Despite its space-saving design, it boasts features typically found on much larger lathes.
KEY FEATURES AND BENEFITS:
- Compact footprint: Ideal for situations where space is limited.
- Electro-magnetic brake: Ensures rapid stopping for improved safety and efficiency.
- Infinitely variable spindle speeds: Allows for precise control over material removal for various projects.
- Ball-bearing mounted steady and follow rests: Provide smooth material movement for optimal results.
- Digital readout (DRO): Enables highly accurate positioning for consistent cuts.
- Large 1-9/16″ spindle bore: Accommodates a wider range of materials.
- Two-speed gearbox: Offers a broad speed range (40-2000 RPM) for tackling diverse projects.
- Durable Meehanite® castings: Maintain rigidity and accuracy over time.
- Coolant system: Extends tool life and improves chip removal.
SPECIFICATIONS:
- Swing over bed: 12 inches
- Distance between centers: 36 inches
- Spindle taper: MT-5 with sleeve, MT-3 in tailstock
- Motor: 2 HP, 230V (single or three-phase)
- Weight: 1212 lbs.
- Overall dimensions: 71 x 30 x 60 inches
HOW TO USE:
- Installation: Secure the lathe to a sturdy workbench and connect it to the appropriate power source (consult the manual for specific instructions).
- Material preparation: Cut your workpiece to the desired length and secure it in the lathe’s chuck or between the centers.
- Speed selection: Choose the appropriate spindle speed based on the material and desired cutting operation (refer to a machining chart for recommended speeds).
- Tool selection: Select the appropriate cutting tool for your project and mount it securely in the tool post.
- Cutting: Engage the spindle and start cutting the material. The DRO system allows for precise control over the depth and travel of the cutting tool.
- Safety: Always wear safety glasses, gloves, and appropriate clothing while operating the lathe.
BENEFITS OF USING Jet E-1236VS W/ ACU-RITE 203 CSS DRO W/ Taper & Collet Closer (892310):
- Versatility: Handles a wide range of metalworking projects from turning parts to facing surfaces.
- Precision: Delivers accurate cuts thanks to the digital readout and high-quality construction.
- Space-saving design: Ideal for workshops with limited floor space.
- Durability: Built with robust components for long-lasting performance.
- Safety features: Includes an electromagnetic brake and chuck guards for increased operator safety.
FEATURES:
- Electro-magnetic brake
- Inverter drive system for infinitely variable spindle speeds
- Steady and follow rest with double sealed ball bearing guides
- Chuck guards
- Front facing chip pan
- 1-9/16″ Spindle Bore
- Two-speed gearbox
- Hardened and ground gears in headstock
- Class 7 precision taper roller bearings
- CNC style lighting with enclosed splash guard
- Overload clutch at feed shaft
- Certified Meehanite® castings
- Integrated locking tool cabinet
- LED RPM readout
- ACU-RITE 203 CSS DRO
- Taper Attachment
- Collet Closer
- 6″ 3-Jaw chuck
- Standard coolant system and other accessories
