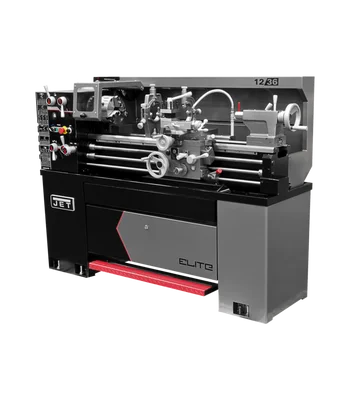

Jet E-1236VS Lathe w/ ACU-RITE 203 CSS DRO With Collet Closer (892309)

Description

Jet E-1236VS Lathe w/ ACU-RITE 203 CSS DRO With Collet Closer (892309) is a compact yet powerful machine designed for schools, small shops, and engineering labs. It combines precision with safety features, making it ideal for various metalworking tasks.

KEY FEATURES AND BENEFITS:

• Compact Design: Fits into smaller spaces without compromising performance.
• ACU-RITE 203 CSS DRO: Ensures precise measurements and control.
• Variable Speed Drive: Offers flexibility for different materials and applications.
• Safety Features: Electromagnetic brake, chuck guard, and overload clutch protect users.
• Durable Construction: Hardened gears and precision bearings for long-lasting performance.
• Versatile Accessories: Includes chuck, faceplates, steady and follow rests, and more.

SPECIFICATIONS:

• Swing Over Bed: 12 inches
• Swing Over Cross Slide: 7-5/16 inches
• Distance Between Centers: 36 inches
• Spindle Bore: 1-9/16 inches
• Spindle Speeds: 0-2000 RPM
• Motor: 2 HP, 230V, 1 or 3 phase
• Dimensions: 71 x 30 x 60 inches
• Weight: 1212 pounds

HOW TO USE:

• Disclaimer: Always refer to the user manual for detailed instructions and safety precautions.
• Set up: Place the lathe on a stable, level surface. Connect to power supply according to electrical specifications.
• Safety Checks: Ensure all guards, brakes, and emergency stops are functioning correctly.
• Workpiece Preparation: Securely mount the workpiece using the chuck, faceplate, or other appropriate method.
• Tool Selection: Choose the correct cutting tool for the material and operation.
• Speed and Feed Settings: Adjust spindle speed and feed rate based on workpiece material and desired finish.
• Operation: Carefully engage the feed and start the spindle. Perform the cutting operation using controlled movements.
• Coolant Application: Use coolant as needed to prevent overheating and improve tool life.
• Shutdown: Bring the machine to a complete stop before dismounting the workpiece or making adjustments.

BENEFITS OF USING JET E-1236VS LATHE W/ ACU-RITE 203 CSS DRO WITH COLLET CLOSER (892309):

• Increased Productivity: Efficient and accurate machining processes.
• Improved Precision: ACU-RITE DRO for precise measurements and control.
• Enhanced Safety: Built-in safety features protect users and equipment.
• Versatility: Handles a wide range of materials and applications.
• Durability: Built to last with high-quality components.

FEATURES:

• Electromagnetic brake
• Inverter drive system
• Ball bearing-mounted steady and follow rests
• CNC style lighting with enclosed splash guard
• CSA/CUS certified
• Hardened and ground gears
• Precision taper roller bearings
• Overload clutch
• Integrated tool cabinet
• LED RPM readout
• Coolant system
