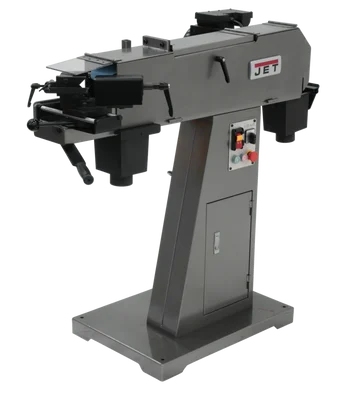

Jet DSAN4-3 230/460V 3PH 4HP Dual Station Abrasive Notcher (756185)

Description

The Jet DSAN4-3 230/460V 3PH 4HP Dual Station Abrasive Notcher (756185) is a powerhouse designed to streamline your metalworking operations. With its innovative dual-station design and heavy-duty build, it tackles notching, grinding, and deburring with ease. Boost productivity and precision in your workshop with this versatile machine.

KEY FEATURES AND BENEFITS:

• Dual Workstations: Quickly switch between notching, grinding, and deburring operations without time-consuming setups.
• Heavy-Duty Construction: Built to last with heavy-gauge steel, ensuring reliability and longevity.
• Versatile Performance:
  • Three distinct work areas for different tasks.
  • Forward and reverse belt direction for varied grinding applications.
  • Multi-positional hand lever vise for optimal workpiece control.
• User-Friendly:
  • Tool-less roll changing simplifies adjustments.
  • Quick belt changes minimize downtime.
  • Conveniently store mandrels and rollers within the stand.
• Clean Work Environment: Dual 3″ dust ports effectively capture debris for a cleaner workspace.
• Safety Certified: CSA/CUS certified, meeting strict safety and electrical standards.

SPECIFICATIONS:

• Model: Jet 756185 DSAN4-3
• Motor: 4 HP, 230/460V, 3-Phase, totally enclosed fan-cooled
• Belt Size: 4″ x 79″
• Included Rollers: Seven rollers (1/2″ to 2-1/2″)
• Included Belts: Three replacement belts (36G, 60G, 80G)
• Angle Capacity: 90 to 30 degrees
• Speed: 3400 RPM
• Working Height: 40-3/4″
• Overall Dimensions: 47.24″ L x 23.6″ W x 46.5″ H
• Net Weight: 344 lbs
• Gross Weight: 510 lbs

HOW TO USE:

1. Preparation: Ensure the machine is securely plugged into a power source and that the desired belt and roller are installed.
2. Workpiece Setup: Secure the workpiece in the multi-positional vise, adjusting it for the desired angle.
3. Operation:
   • Notching: Position the workpiece over the appropriate roller and activate the motor. Gently lower the workpiece onto the roller and move it across to create the notch.
   • Grinding: Position the workpiece against the grinding belt and activate the motor. Apply even pressure and move the workpiece along the belt for smooth grinding.
   • Deburring: Utilize the deburring station to remove sharp edges and refine the workpiece.
4. Safety: Always wear appropriate safety gear, including eye protection and hearing protection. Follow manufacturer instructions and safety guidelines for proper operation.

BENEFITS OF USING THE Jet DSAN4-3 230/460V 3PH 4HP Dual Station Abrasive Notcher (756185):

• Increased Efficiency: Dual stations and streamlined operations minimize downtime.
• Enhanced Precision: Achieve accurate results in notching, grinding, and deburring.
• Versatility: Tackle a wide range of metalworking tasks with a single machine.
• Durability: Heavy-duty construction ensures years of reliable service.
• Cleanliness: Efficient dust collection system maintains a tidy workspace.

FEATURES:

• Totally enclosed fan-cooled motor for optimal performance.
• 2-year JET RED ASSURANCE warranty for peace of mind.
