Description

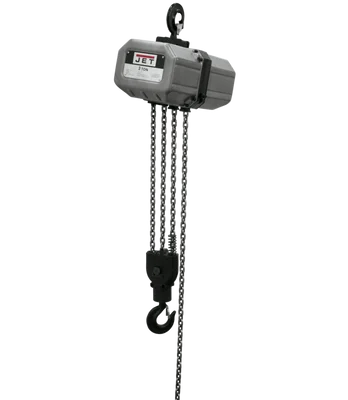

Jet 3SS-3C-20 3PH 3 Ton Electric Chain Hoist with 20″ Lift (332000) is a powerful and versatile lifting solution designed for commercial and industrial applications. With a lifting capacity of 3 tons and a 20-foot lift height, this hoist can handle a wide variety of heavy-duty lifting tasks.
KEY FEATURES AND BENEFITS:
- Durable Construction: Built with a tough steel exterior and a powder-coated finish, the JET 332000 is built to withstand demanding environments.
- Safe Operation: This hoist prioritizes safety with features like a slip-clutch overload protection system, upper/lower limit switches, and a reliable DC electromagnetic brake.
- Easy to Use: The hoist comes pre-wired for quick installation and features a user-friendly push-button control pendant for effortless operation.
- Low Maintenance: The lifetime-lubricated gear train eliminates the need for regular oil changes, minimizing maintenance requirements.
- Multiple Power Options: Available in single-phase or three-phase configurations to suit your electrical needs.
SPECIFICATIONS:
- Capacity: 3 tons (6,600 lbs)
- Lift Height: 20 feet
- Power: 3-phase, 230/460V (also available in single-phase)
- Motor: 2-1/7 HP
- Duty Cycle: 30%
- Lifting Speed: 8 feet per minute (up) / 24 feet per minute (down)
- Load Chain: Grade 80 black oxide coated, 8 mm diameter
- Weight: 229 lbs.
HOW TO USE:
- Installation: Ensure the hoist is mounted on a secure and stable structure with a capacity exceeding the intended load. Refer to the user manual for detailed installation instructions.
- Pre-Lift Inspection: Verify the hoist is in good working condition, the chain is free from damage, and the hook is properly latched.
- Attaching the Load: Secure the load to the hook using a suitable sling or lifting attachment. Ensure the load is properly balanced and centered.
- Operation: Use the push-button control pendant to raise and lower the load. Observe the load throughout the lift and stop immediately if any issues arise.
- Post-Lift: Once the lift is complete, lower the load to a stable surface and disconnect it from the hook.
BENEFITS OF USING Jet 3SS-3C-20 3PH 3 Ton Electric Chain Hoist with 20″ Lift (332000):
- Increased Efficiency: The JET 332000 hoist simplifies and streamlines lifting tasks, saving time and labor costs.
- Enhanced Safety: Built-in safety features minimize the risk of accidents and injuries during lifting operations.
- Durability and Reliability: The robust construction ensures long-lasting performance in demanding environments.
- Reduced Maintenance: The low-maintenance design minimizes downtime and maintenance costs.
- Versatility: This hoist tackles various lifting tasks with its 3-ton capacity and 20-foot lift height.
FEATURES:
- All-steel construction for maximum durability
- NEMA 4X compliant push-button control pendant for weather resistance
- Powder-coated finish for corrosion resistance
- Grade 80 black oxide load chain for superior strength
- Upper and lower limit switches prevent overtravel
- Slip-clutch overload protection safeguards against overloading
- DC electromagnetic brake holds the load securely even during power outages
- Quick-connect wiring for easy power and control connections
