Description
#5273 LPH-50 LPH50-062G GUN/CUP(PC5)
LPH50 GRAVITY

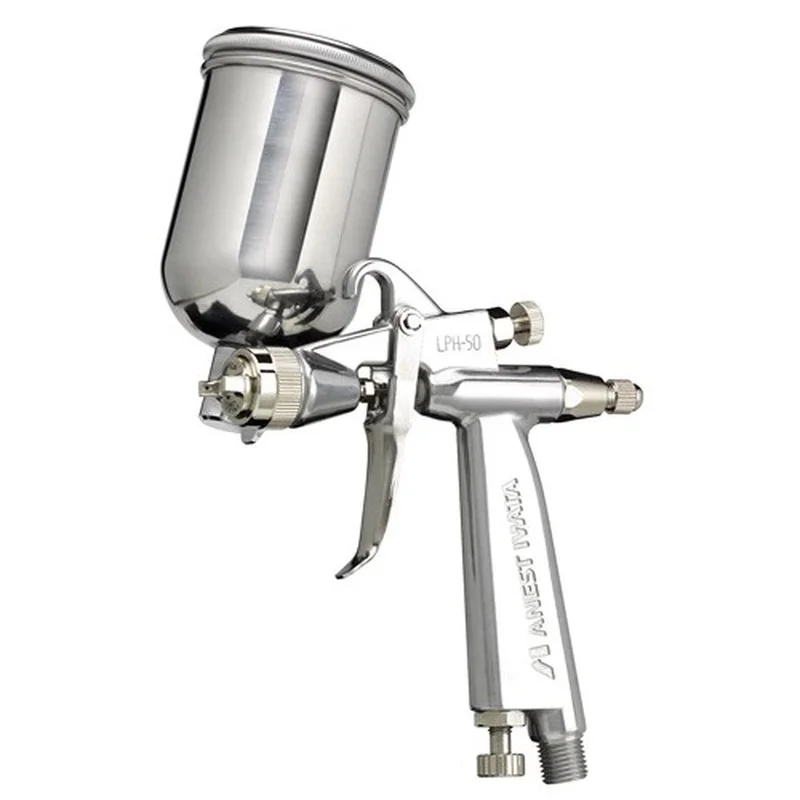

Miniature high performance gravity feed (HVLP) spray gun provides ideal spray control when blending or shading. The compact lightweight gun is designed with side mounted gravity cup allowing 360° rotation giving the operator options to spray at a wide variety of angles. Featuring adjustable spray pattern from round to full-fan shape while producing spray patterns from 1/8″ up to 4″.
| Max Pressure | 98 PSI |
| Noise Level | 57dBA |
| Spray condition | Recommended |
| Measuring Point | 1m backwards from gun, 1.6m height |
| Max temp. (atmosphere) | 41 °F – 104°F |
| Max temp. (Air-Fluid) | 41°F – 109.4°F |
| Model | LPH50-062G |
| Type of feed | Gravity |
| Nozzle orifice (in) | 0.024 |
| Atomizing air pressure | 13 PSI |
| Air pressure inside air cap | 10 PSI |
| Fluid output | 25 ml/min |
| Air consumption | 1.8 CFM |
| Patter width (in) | 2.4 |
| Air & fluid connection | G1/4 |
| Mass (lbs) | 0.44 |
