Description

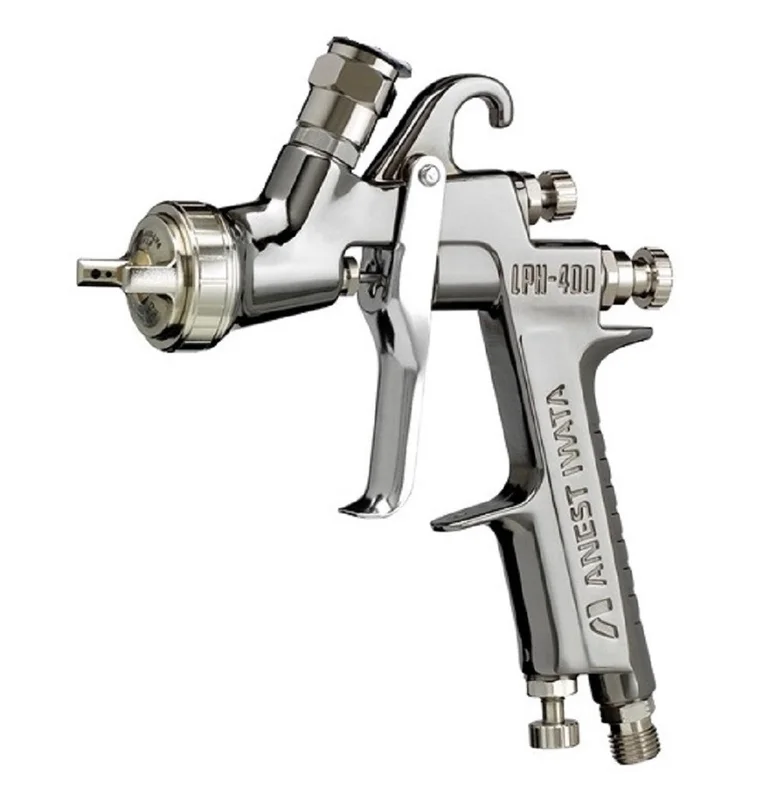

LPH400-LV GRAVITY – 5560 LPH-400 LPH400-164LV GUN ONLY
High performance center post gravity feed HVLP spray gun with low air consumption and superior atomization utilizing our LV technology and our tulip inspired spray pattern. The gravity-feed design provides for easy clean up and reduces material waste.
See our gun and cup combinations available in one simple kit!
| Max Working Pressure | 98 PSI |
| Noise Level | 69.4 dB(A) |
| Temperature Level | 41-104°F |
| Model | LPH400-164LV |
| Type of Feed | Gravity |
| Nozzle Orifice (in.) | 0.063 |
| Air Cap Set | LV4 |
| Atomizing air Pressure (PSI) | 16 PSI |
| Air Pressure Inside Air Cap | 10 PSI |
| Fluid Output | 150 ml/min |
| Air consumption | 9.5 CFM |
| Pattern Width (in.) | 11.8 |
