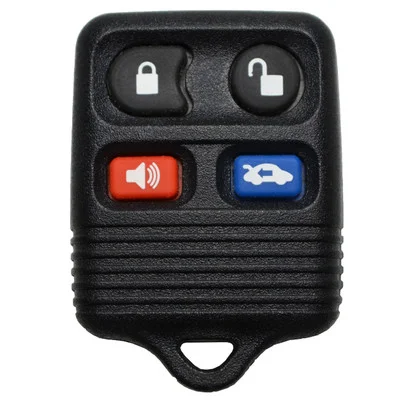

Ilco RKE-FORD-4B1 Ford 4 Button Remote Keyless Entry (NL)

Description

Ilco RKE-FORD-4B1 Ford 4 Button Remote Keyless Entry (NL)

• OEM Keyless Entry Remote Guaranteed to Work with Your Vehicle
• To perform the DIY programming for the key you MUST already have 2 working unique (not cloned) keys. If you only have 1 or no keys for the vehicle then you will need to get this remote programmed by a Qualified Professional Automotive Locksmith or Dealership
• Vehicle MUST have Push-to-Start Ignition
• Match FCC ID in Description to an Existing Remote or Check Compatible Vehicles to Ensure Compatibility with Your Vehicle

For Models:

• Ford
• Crown Victoria (2007-2010)
• Escape (2000-2006)
• Escort (1999-2003)
• Explorer (2000-2010)
• Focus (2000-2011)
• Mustang (1999-2009)
• Grand Marquis (2007-2011)
• Navigator (2003-2010)

Buttons:

• Lock
• Unlock
• Trunk
• Alarm

Frequency: 315 Mhz

FCC ID: CWTWB1U331

Battery: CR2032

How to Program your Key Fob Replacement:

Option 1:

1. Close all doors, then open driver’s door and press the Unlock button on driver’s door while it is open and insert key into the ignition.
2. Turn ignition from OFF to RUN 8 times within 8 seconds, with the 8th time ending in RUN. Door locks will cycle to confirm programming mode. (if the door locks do not cycle, then it was done incorrectly. You must start over by removing key and beginning from step 1)
   (Off is the position where you can remove your key, RUN is the position just shy of starting your car.)
3. Within 10 seconds press any button on the first keyless remote to be programmed. Door locks will cycle to confirm programming. If you only have one remote then skip to step 5.
4. Within 10 seconds, press any button on the second keyless remote. Door locks will cycle again to confirm programming. Repeat step 4 for all other remotes.
5. Turn ignition to OFF. Locks will again cycle to indicate the end of programming mode.

*If this does not work try the procedure with the door closed.

Option B:

1. Fasten seatbelt and close all doors
2. Turn the ignition from OFF to RUN 4 times within 3 seconds.
3. Turn the ignition OFF. The system will chime to confirm programming mode.
4. Within 10 seconds, press and hold any button on the first keyless remote. The system will chime once to confirm programming.
5. Within 10 seconds, press and hold any button on the second keyless remote. The system will chime once to confirm programming.
6. Turn ignition to RUN to exit programming mode.

Please note: All steps should be performed in rapid succession. If you do not hear the initial chime or door lock cycle, this means the vehicle never entered programming mode. You should remove the key from ignition, open and close the door and start over.
