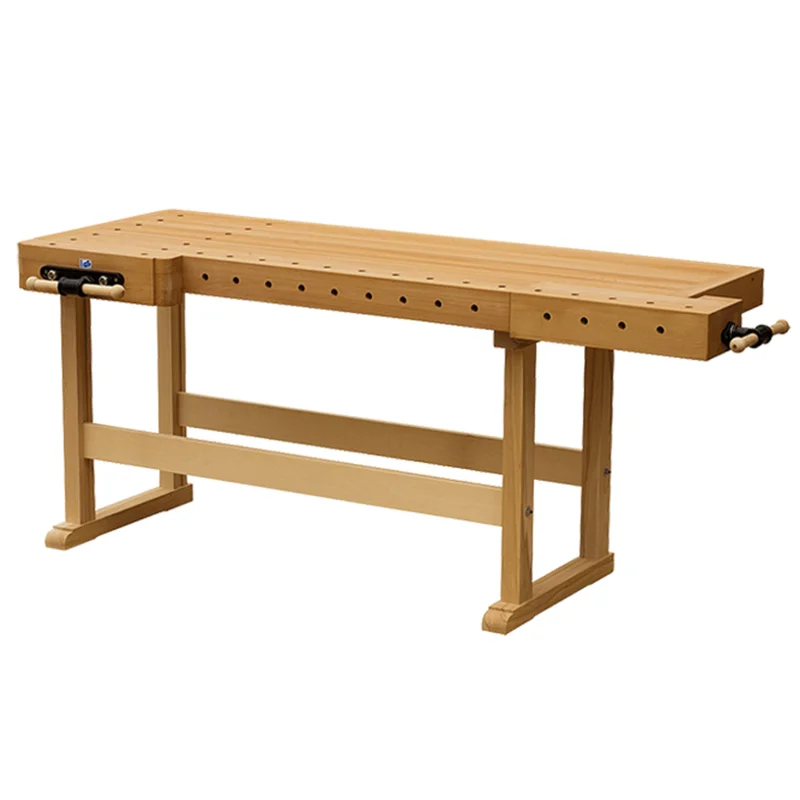

This newest addition to our fine family of Hofmann & Hammer German Woodworking Benches has an “American” style top that provides a larger contiguous area to support your work compared to a European-style top with a recessed tool well. 3/4″ round dog holes are strategically located to afford you multiple options of positioning & holding your work using round bench dogs (sold separately).
On the top front edge of the bench, with the end-dog vise fully extended, you get an impressive 76″ of capacity between bench dogs. Twin dog holes set apart 13-3/4″ traverse across the width of the bench and provide 29″ of double-dog holding capacity with the front vise fully open. Full sized doors and tall panels can be dogged securely utilizing the dog holes located in the vertical face of the front apron.
The All-Round is made from solid European beech and measures 71″ long x 23-5/8″ wide x 34″ high. The top is 2″ thick and has a 4″ wide apron. Footprint of the base is 51″ x 24-1/2″. Weight is 220 lb. Bench dogs are sold separately.
Specifications(Metric measurements are precise manufacturers specs, inch measurements are approximate.)
- Table Size — 23-5/8″ x 70-7/8″ (600 mm x 1800 mm)
- Table Size including vise overhang — 31-1/16″ x 80-11/16″ (790 mm x 2015 mm)
- Table Top Thickness — 1-15/16″ (50 mm)
- Table Skirt Thickness — 3-15-16″ (100 mm)
- Table Height — 34-1/4″ (870 mm)
- Front Vise Width — 19-1/2″ (495 mm)
- Front Vise Opening — 7-3/4″ (195 mm)
- Tail Vise Overall Size — 9-7/16″ x 24-7/16″ (240 mm x 620 mm)
- Tail Vise Length — 20-1/16″ (510 mm)
- Tail Vise Overhang — 1-5/8″ (40 mm)
- Tail Vise Travel — 8-13/16 ” (225 mm)
- Weight — 220 lb (100 kg)
- Bench Material — European Beech
- Finish — cold-pressed rapeseed oil
- Bench dogs are NOT included.
Additional Information
Workbench Assembly Instructions
