Description

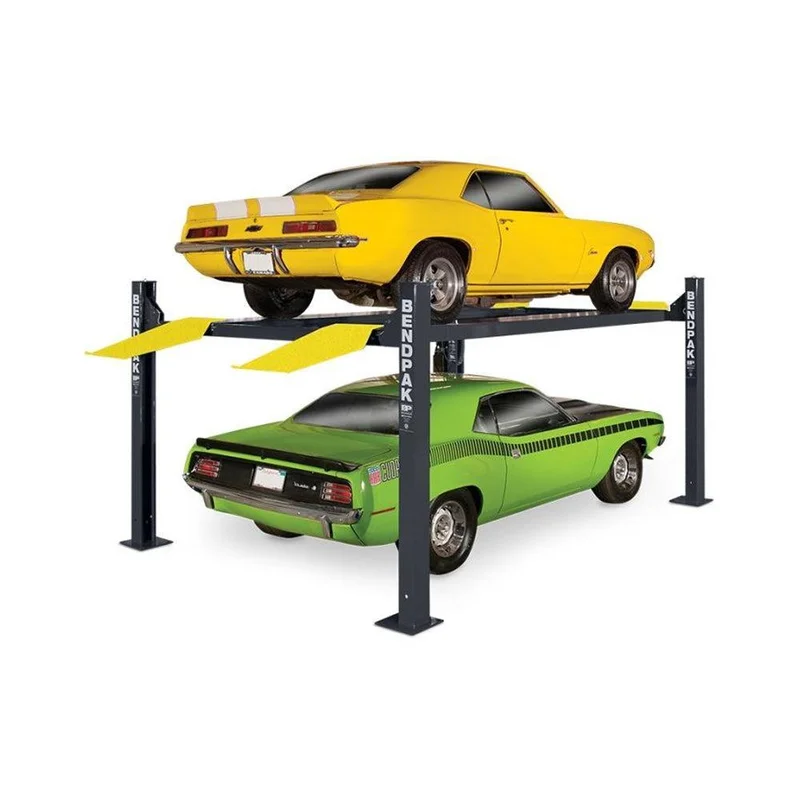

Specifications HD-9XL
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Wide drive-thru with standard lift height and long runways
- Electric / hydraulic power system
- Internal “Anti-Sway” slider blocks in each column
- Features heavy-duty 3/8″ aircraft cable
- Multi-position safety locks in each column
- Ramps feature non-skid surface
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder underneath runway
- Oversized self-lubricating cable rollers
- Rugged 1.25″ roller axles
- Adjustable lock ladders
- Push-button pneumatic safety release
- Optional 4,500-lb. capacity jack available (Model RBJ4500)
Capacity
Lifting Capacity*9,000 lbs. (4,082 kg)*Max Capacity / Front Axle4,500 lbs. (2,041 kg)*Max Capacity / Rear Axle4,500 lbs. (2,041 kg)
Rise
A – Min. Runway Height:5″ (127 mm)B – Max. Rise:70″ (1,778 mm)C – Max. Lifting Height:75″ (1,905 mm)Time to Full Rise:50 seconds
Outside Dimensions
D – Overall Width:110.25″ (2,800 mm)E – Outside Length:198″ (5,029 mm)F – Overall Length:224.5″ (5,702 mm)G – Height of Columns:88″ (2,235 mm)
Inside Dimensions
H – Width Between Columns:100.25″ (2,546 mm)I – Drive-Thru Clearance:86.5″ (2,197 mm)
Runways
J – Runway Width:19″ (483 mm)K – Length of Runways:182.25″ (4,629 mm)L – Width Between Runways:35″ (889 mm) or 41″ (1,041 mm)M – Runway Centerline:56.75″ (1,441 mm) or 63″ (1,600 mm)N – Outside Edge of Runways:75.75″ (1,924 mm) or 82″ (2,083 mm)
Minimum Wheelbase
Rated Capacity:135″ (3,429 mm)75% Capacity:115″ (2,921 mm)50% Capacity:95″ (2,413 mm)25% Capacity:80″ (2,032 mm)
Locking
Locking Positions:14Lock Spacing:Every 4″ (102 mm)
Power Unit
Motor:220 VAC / 60 Hz / 1 PhNoise:45 dB
Shipping
Weight:1,696 lbs. (769 kg)Dimensions:192” x 22” x 28” (4,877 mm x 558 mm x 711 mm)
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
Note: Not all BendPak lift models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact.
BendPak lifts are supplied with concrete fasteners that meet the criteria of the American National Standard ANSI/ALI ALCTV-(Current). Buyer is responsible for all charges relating to any special regional structural or seismic anchoring requirements specified by any other agencies or codes such as the Uniform Building Code (UBC) or International Building Code (IBC).
WARNING: California Prop 65
