Description

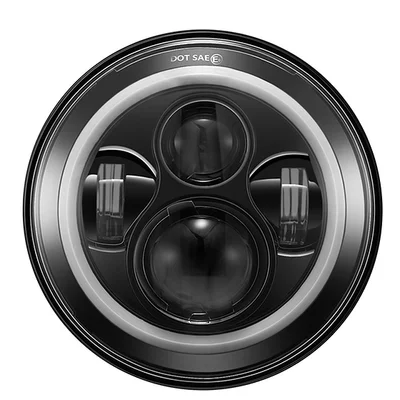

Enhance your driving experience with the Haizer USA 7″ Black Round Projector LED Headlight (HZR-881B). These high-performance headlights use state-of-the-art LED technology to provide exceptional brightness and clarity, making nighttime driving safer and more enjoyable. Designed to fit most vehicles with 7-inch round headlights, including JK and earlier Jeeps, these lights are straightforward to install and built for longevity. Upgrade your ride today with Haizer quality.
KEY FEATURES AND BENEFITS:
- Improved Road Illumination: Offers a safer and more comfortable driving experience after dark.
- Focused Light Pattern: Projector LED technology reduces glare for oncoming traffic while enhancing your own visibility.
- Integrated DRL: White Daytime Running Light improves your vehicle’s daytime visibility and presence.
- Amber Turn Signals: Halo-integrated signals provide clear and effective communication to other drivers.
- Durable Construction: Die-cast aluminum housing and polycarbonate lens ensure long-lasting performance.
- Weather-Resistant: IP67 waterproof rating protects against dust and water ingress.
- Certified Safe: Meets DOT and SAE standards for safety compliance.
SPECIFICATIONS:
- Part Number: HZR-881B
- Size: 7″ Diameter
- High Beam Output: 45W, 3,620 Lumens
- Low Beam Output: 30W, 2,480 Lumens
- Halo Functionality: White Daytime Running Light (DRL) and Amber Turn Signals
- Color Temperature: 6,500K
- Housing Material: Die-cast Aluminum
- Housing Color: Black
- Lens Material: Polycarbonate (PC)
- Waterproof Rating: IP67
- Certifications: DOT, SAE, IP67, CE, ROHS
- Lifespan: Greater than 50,000 hours
- Warranty: 12 Months
- Connector Type: H4 Plug
- Included Adapter: H13 Adapter
- Sold: By the Unit (one headlight per purchase)
- Included in Product When Purchased: One Haizer USA 7″ Black Round Projector LED Headlight (HZR-881B), one H4 plug, one H13 adapter
HOW TO USE:
- Safety First: Before starting, ensure your vehicle is turned off and the battery is disconnected for safety.
- Remove Old Headlight: Carefully remove the bezel or trim around your existing 7-inch headlight. Disconnect the electrical connector and release any clips or screws holding the old headlight in place.
- Connect New Headlight: Plug the H4 connector from the HZR-881B headlight into your vehicle’s headlight harness. If your vehicle uses an H13 connector, use the provided H13 adapter to ensure proper fitment.
- Connect DRL/Turn Signal Wires: The halo ring will have separate wires for the white DRL and amber turn signal functions. Connect the white DRL wire to a switched 12V power source that activates with your vehicle’s ignition (e.g., a fuse tap to a DRL fuse or parking light wire). Connect the amber turn signal wire to your vehicle’s existing turn signal wire. Ensure all connections are secure.
- Mount New Headlight: Carefully position the new HZR-881B headlight into the bucket. Secure it using the existing headlight retention clips or screws.
- Test Functionality: Reconnect your vehicle’s battery. Turn on your vehicle and test the high beam, low beam, DRL, and turn signal functions to ensure they are working correctly.
- Adjust Aim (if necessary): If the beam pattern appears too high or too low, adjust the headlight aim using the vehicle’s headlight adjustment screws according to your vehicle’s service manual or local regulations.
- Reinstall Trim: Reinstall any bezels or trim removed earlier.
BENEFITS OF USING HAIZER USA 7″ BLACK ROUND PROJECTOR LED HEADLIGHT (HZR-881B):
- Enhanced Nighttime Visibility: Experience significantly brighter and more focused light output compared to traditional halogen headlights, making it easier to see obstacles and road hazards in the dark.
- Improved Driving Safety: The superior illumination and integrated DRL and turn signals contribute to greater road safety by increasing your vehicle’s visibility to other drivers.
- Modern Aesthetic Upgrade: The sleek black housing and distinct halo ring design provide a contemporary and stylish appearance to your vehicle.
- Long-Lasting Performance: With an advertised lifespan exceeding 50,000 hours, these LED headlights are designed to last much longer than standard bulbs, reducing the need for frequent replacements.
- All-Weather Reliability: The IP67 waterproof rating and robust construction ensure reliable operation in rain, snow, or dusty conditions.
- Simplified Installation: Designed for a direct fit on most 7-inch round headlight applications, and includes both H4 and H13 connectors for broad compatibility.
FEATURES:
- 7-inch diameter circular design
- Projector lens technology for precise light distribution
- High-intensity 45W high beam output
- Efficient 30W low beam illumination
- Integrated halo ring with dual-color functionality
- Cool 6,500 Kelvin light temperature for clear visibility
- Black finish die-cast aluminum housing for heat dissipation
- Impact-resistant polycarbonate front lens
- Advanced sealing against dust and water immersion
- Compliance with DOT, SAE, CE, and ROHS standards
- Extended operational life exceeding 50,000 hours
- Comprehensive 12-month manufacturer’s warranty
- Universal H4 plug connection with H13 adapter
- Sold as an individual lighting unit
