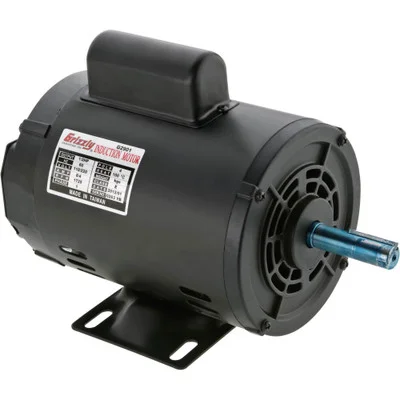

Grizzly Industrial Motor 1/2 HP Single-Phase Open 110V/220V (G2901, G2902)

Description

Grizzly Industrial Motor 1/2 HP Single-Phase Open 110V/220V are high-quality replacements for a variety of woodworking machines. These motors come in two-speed options—1725 RPM (G2901) and 3450 RPM (G2902)—to accommodate both precision and heavy-duty tasks.

Both motors are prewired for 110V, with the option to reconfigure to 220V. Their 200MFD 125VAC start capacitors ensure smooth operation, while the robust design provides long-lasting performance in demanding workshop settings.

• Specifications and Dimensions
  • Power: 1/2 HP
  • Speed: 1725 RPM (G2901) or 3450 RPM (G2902)
  • Voltage: 110V/220V (prewired for 110V)
  • Amperage: 8A/4A (G2901), 8.6A/4.3A (G2902)
  • Frame: NEMA 56
  • Start capacitor: 200MFD 125VAC
  • Open Drip Proof (ODP) design for clean environments
  • Dimensions: U: 5/8″, N: 2.16″, C: 10.68″, O: 7.49″



• Key Features and Benefits
  • Two-speed options: 1725 RPM and 3450 RPM
  • Reversible rotation for versatile use
  • ODP design ensures reliability in clean environments
  • Durable construction with NEMA 56 frames
