Description

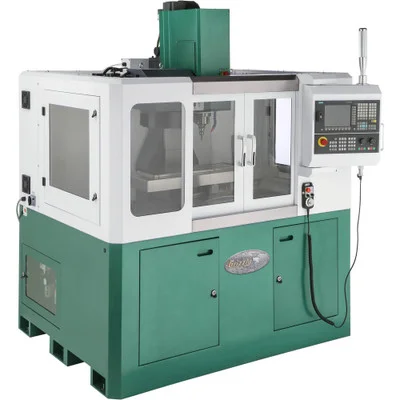

Grizzly Industrial 8″ x 27″ Enclosed CNC Mill with Auto Tool Changer (G0876) is engineered for production-grade performance and efficiency. With a powerful 3 HP BT30 spindle, rapid speeds up to 400 inches per minute, and an 8-position automatic tool changer, this CNC mill is designed to streamline operations and maximize productivity.
The Siemens Sinumerik CNC controller ensures precise machining with +/-0.0005″ repeatability. This enclosed mill is equipped with a 13-gallon coolant tank and servo motors driving ball screws on all axes, making it ideal for fast and accurate manufacturing.
- Specifications and Dimensions
- Spindle motor: 3 HP, 220V, 3-Phase, 6.4A
- Spindle taper: BT30
- Spindle speeds: Variable, 50–10,000 RPM
- X- and Y- motors: 1 HP, 2.1A
- Z- motor: 1.3 HP, 3A
- Spindle to column: 11″
- Spindle to table: 16-1/2″
- Longitudinal travel: 12-3/16″
- Cross travel: 7-3/4″
- Vertical travel: 11-3/4″
- Position resolution: +-0.0008″
- Repeat position resolution: +-0.0005″
- Tool changer: 8 positions
- Tool change speed: 6 seconds
- Max tooling weight: 13 lbs.
- Table size: 8-1/4″ x 27″
- Table T-slots: (3) 5/8″
- Max workpiece weight: 220 lbs.
- Rapid speed: 400 in./min.
- Coolant tank capacity: 13 gallons
- Overall dimensions: 71″ W x 65″ D x 79″ H
- Approximate shipping weight: 3350 lbs.
- Key Features and Benefits
- Hands-free 8-position automatic tool changer for efficient machining
- Siemens Sinumerik CNC controller for precision and reliability
- Rapid table movement speeds up to 400 in./min.
- Durable enclosed cabinet design for safety and cleanliness
- Easy access to the work table from three sides
