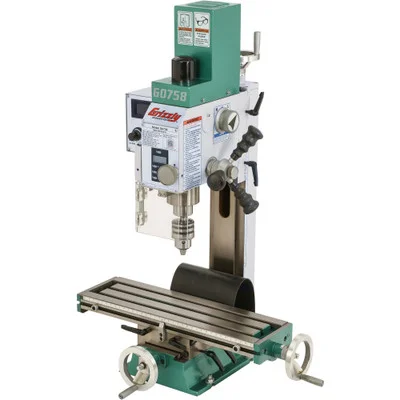

Grizzly Industrial 6″ x 20″ 3/4 HP Mill/Drill (G0758)

Description

Grizzly Industrial 6″ x 20″ 3/4 HP Mill/Drill (G0758) is a versatile and powerful machine designed for precision machining in compact spaces. Equipped with a high-torque motor and variable-speed spindle control, this mill/drill delivers quiet yet powerful operation with speeds ranging from 50 to 2000 RPM.

This mill is constructed with precision-ground dovetail headstock, column, and table ways for rigidity and accuracy. The spacious table and extended travel provide the ability to handle larger workpieces.

• Specifications and Dimensions
  • Motor: 3/4 HP, 110V, single-phase, 10A
  • Spindle taper: R-8
  • Spindle speeds: Variable, 50–1000 RPM (low), 100–2000 RPM (high)
  • Max distance spindle-to-column: 6-5/8″
  • Max distance spindle-to-table: 8-3/4″
  • Spindle travel: 2″
  • Drilling capacity: 1/2″ mild steel
  • Head travel: 8-1/4″
  • Column tilt: 45° left/right
  • Table size: 5-3/4″ x 19-3/4″
  • T-slots: 3 @ 1-1/2″ centers, 3/8″ wide
  • Longitudinal travel: 13-1/8″
  • Cross travel: 5-1/2″
  • Overall dimensions: 19-3/4″ W x 21″ D x 30-1/4″ H
  • Approximate shipping weight: 204 lbs.



• Key Features and Benefits
  • High-torque motor with low noise operation for consistent performance.
  • Variable-speed spindle control with a built-in DRO for precision adjustments.
  • Two-speed gearbox for optimized power transfer at different speed ranges.



• Includes
  • 3–16mm B16 drill chuck
  • Drill chuck arbor B16 x R8
  • Open-ended and hex wrenches
  • Toolbox
