Description

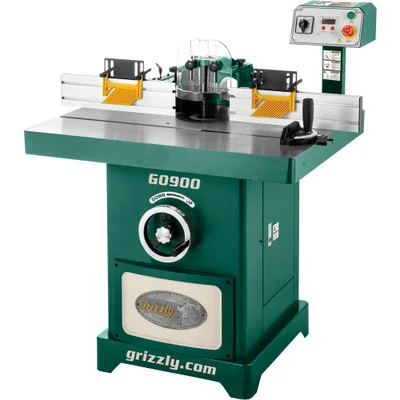

Grizzly Industrial 5 HP Deluxe Spindle Shaper (G0900) is designed to boost productivity with its powerful 5 HP motor and a host of precision features. This shaper’s extra-large fence, equipped with independent micro-adjustable faces, ensures accurate and efficient shaping, even for the most demanding jobs.
With three spindle speeds—5000, 7000, and 10,000 RPM—and compatibility with two spindle sizes (3/4″ and 1-1/4″), the 5 HP Deluxe Spindle Shaper offers incredible versatility. The machine also includes dual 4″ dust ports, a clear cutter guard, and featherboard attachments for safety and cleanliness.
- Specifications and Dimensions
- Motor: 5 HP, 220V, single-phase, 18A
- Table size: 39-1/4″ x 31-1/2″
- Table counterbore: 5-3/4″ dia. x 5/8″ deep
- Floor-to-table height: 35-1/4″
- Spindle travel: 4″
- Spindle sizes: 3/4″, 1-1/4″
- Spindle lengths: 3-7/8″, 5-7/8″
- Spindle openings: 2-1/2″, 4-1/8″, 5-1/4″, 7″
- Maximum cutter height: 5″
- Maximum cutter diameter: 7″
- Spindle speeds: 5000, 7000, 10,000 RPM
- Overall size: 39-1/2″ L x 35-1/2″ W x 50-1/2″ H
- Approximate shipping weight: 812 lbs.
- Key Features and Benefits
- Digital read-out (DRO) for precise height positioning
- Micro-adjustable fence for accurate depth adjustments
- Three spindle speeds for versatile shaping applications
- Dual 4″ dust ports for efficient chip extraction
- Featherboard attachments ensure secure workpiece handling
- Quick-release belt tensioner for easy maintenance
- Includes two spindle sizes (3/4″, 1-1/4″) for maximum flexibility
- Pre-drilled holes for optional power feeder attachment
- Includes
- Open-end wrenches: 14 x 17mm, 22 x 24mm
- Spindle wrench: 50mm
- Hex wrenches: 3mm, 6mm
- Combo screwdriver (#1)
- Starting pin
- Featherboards for table and fence
