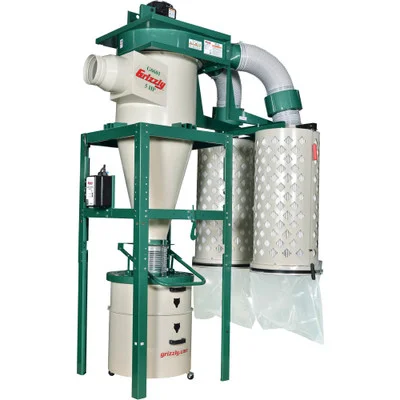

Grizzly Industrial 5 HP 3-Phase Cyclone Dust Collector (G0601) combines power and efficiency for superior dust management in woodworking and industrial applications. Its cyclonic action separates heavy dust particles into a 55-gallon steel drum while fine particles are filtered through a high-performance cartridge filter.
This dust collector features a robust 5 HP motor, a 16-inch steel radial fin impeller, and a 226-square-foot filter surface area. Designed with durability and ease of use in mind, it includes a filter cleaning device, casters on the drum for easy disposal, and a 360° blower rotation for flexible duct connections.
- Specifications and Dimensions
- Motor: 5 HP, 220V/*440V, 3-phase, 13.7A/6.9A
- Minimum circuit size: 13.7A @ 220V, 6.9A @ 440V
- Intake hole size: 10″ with 8″ adapter
- Impeller: 16″ steel radial fin
- Airflow capacity: 2184 CFM @ 1.9″ SP
- Maximum static pressure: 14.0″
- Filtration: 0.2–2 micron
- Filter surface area: 226 sq. ft.
- Collection Drum: Steel, 55 gallons
- Sound rating: 83–86 dB
- Overall dimensions: 63″ W x 56-7/8″ D x 111-1/2″ H
- Approximate shipping weight: 645 lbs.
- Key Features and Benefits
- Cyclonic action separates heavy dust particles from fine particles
- Efficient cartridge filter traps 99.9% of particles from 0.2–2 microns
- Steel 55-gallon drum with casters for easy disposal
- 16-inch radial fin impeller ensures high airflow and static pressure
- 360° blower and barrel rotation for flexible duct positioning
