Description

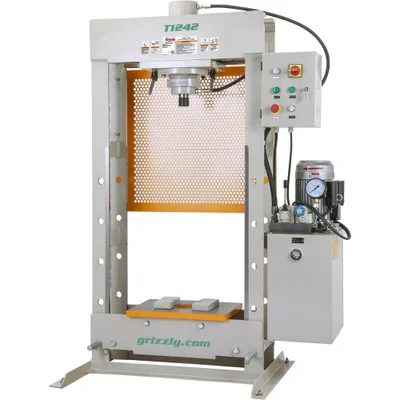

Grizzly Industrial Shop Press (T1242) offers 30 tons of force, making it ideal for pressing, forging, stamping, and other heavy-duty applications. Powered by a 3 HP motor, it features motor-driven hydraulic operation and five table height positions to accommodate workpieces of various sizes with precision and efficiency.
The horizontally adjustable sliding piston head provides versatility for off-center pressing, while the built-in pressure gauge ensures accurate pressure monitoring. Its welded steel frame and precision-ground cast-iron table deliver maximum rigidity and stability for demanding shop tasks.
- Specifications and Dimensions
- Motor: 3 HP, 220V, single-phase, 13.5A
- Max. applied pressure: 60,000 lbs. (30 Tons)
- Max. stroke: 10″
- Table to piston distance: 7-3/4″ to 36-1/2″
- Piston head diameter: 2″
- Working plate size: 30″ W x 12-3/4″ D
- Maximum workpiece width: 27″
- Footprint: 40″ W x 27″ D
- Overall dimensions: 50″ W x 27″ D x 72″ H
- Approximate shipping weight: 1232 lbs.
- Key Features and Benefits
- Five table height positions for versatile workpiece accommodation
- Sliding head for handling off-center parts with ease
- Built-in pressure gauge for precise pressure control
- Protective rear shielding for added safety
- Welded steel frame and cast-iron table for maximum rigidity
- Includes two steel table plates and lifting chain for convenience
