Description

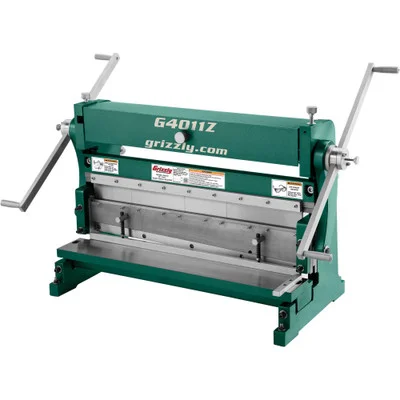

Grizzly Industrial 30″ 3-in-1 Sheet Metal Machine (G4011Z) is an essential tool for fabrication workshops. It allows you to roll, bend, and shear sheet metal with ease and precision. Built with heavy-duty cast-iron construction, this machine offers durability for years of reliable performance.
The slip rollers are perfect for creating cylinders, cones, and arcs, while the integrated bending grooves accommodate wires, rods, and small tubing. The reversible shear blades deliver clean cuts, making this a versatile addition to your workspace.
- Specifications and Dimensions
- Maximum capacity mild steel: 22-gauge at full width
- Maximum width: 30″
- Pan/box brake minimum reverse bend: 1/2″
- Maximum height pan/box brake sides: 2-3/8″
- Number of fingers: 7
- Width of fingers: 1″, 2″, 3″, 4″, 4″, 6″, 10″
- Slip roll minimum diameter: 1-5/8″
- Slip roll wire sizes: 3/16″, 1/4″, 5/16″
- Front stop scale range: 1/2″–7″
- Rear stop scale range: 1/2″–18″
- Footprint: 17-1/2″ W x 33″ L
- Overall size: 45″ W x 28″ D x 26″ H
- Approximate shipping weight: 475 lbs.
- Key Features and Benefits
- 3-in-1 design: rolls, bends, and shears sheet metal
- Heavy-duty cast-iron construction for long-lasting use
- Reversible shear blades for clean, precise cuts
- Pan/box brake allows up to 90° bends for pans, trays, and boxes
- Adjustable stops and scales ensure repeatable accuracy
