Description

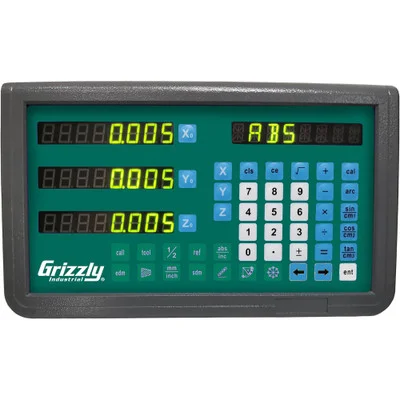

Grizzly Industrial 2-Axis Lathe DRO includes highly accurate linear optical scales and an intuitive digital readout designed for seamless lathe operation. With advanced features like pitch circle diameter (PCD) and line hole positioning, this DRO system simplifies complex machining tasks while ensuring consistent results.
The readout is housed in a sealed aluminum case, protecting the circuitry from dust, fumes, and coolant. Each scale is equipped with durable plastic seals for oil resistance and smooth movement, thanks to a P5-grade bearing system.
- Specifications and Dimensions
- T32999: Scale travel lengths: 5-15/16″, 31-1/2″, Accuracy: ±6μm
- T33000: Scale travel lengths: 5-15/16″, 43-5/16″, Accuracy: ±6μm, ±15μm
- T33001: Scale travel lengths: 7-7/8″, 13-13/16″, Accuracy: ±6μm
- T33008: Scale travel lengths: 7-7/8″, 39-3/8″, Accuracy: ±6μm, ±10μm
- T33009: Scale travel lengths: 7-7/8″, 43-5/16″, Accuracy: ±6μm, ±15μm
- T33012: Scale travel lengths: 9-7/8″, 43-5/16″, Accuracy: ±6μm, ±15μm
- T33017: Scale travel lengths: 13-13/16″, 51-3/16″, Accuracy: ±6μm, ±25μm
- T33018: Scale travel lengths: 13-13/16″, 63″, Accuracy: ±6μm, ±25μm
- Supply voltage: DC 5V
- Resolution: 5μm
- Optical period: 20μm
- Optical measurement: Transmissive infrared
- Repeatability: 2μm
- Seal protection: IP53
- Scanning head sliding system: Vertical five-bearing sliding system
- Key Features and Benefits
- Advanced DRO functions: PCD, inclined machining, and radius calculations
- Plastic seals for enhanced oil resistance and durability
- Smooth and accurate scale motion supported by P5-grade bearings
